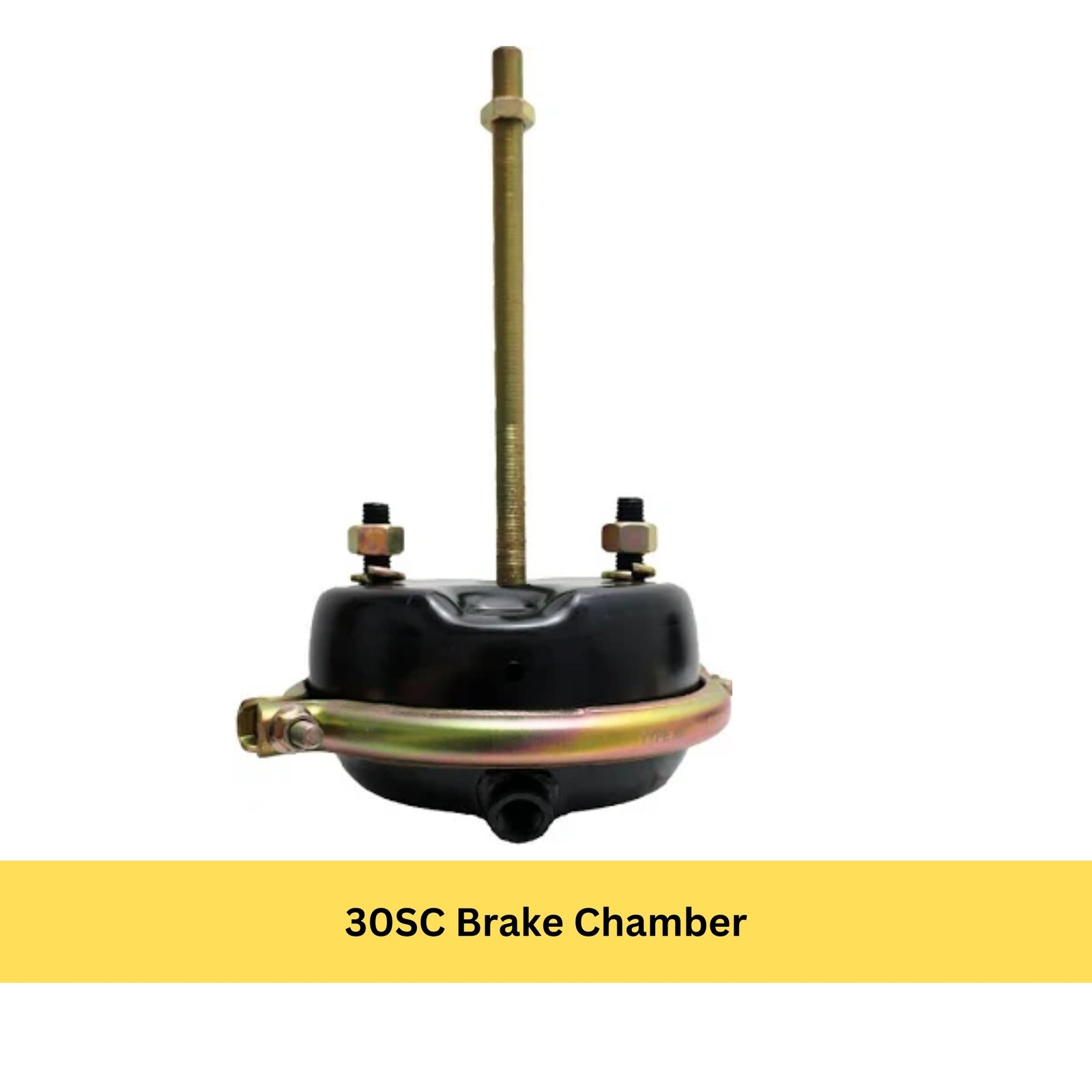

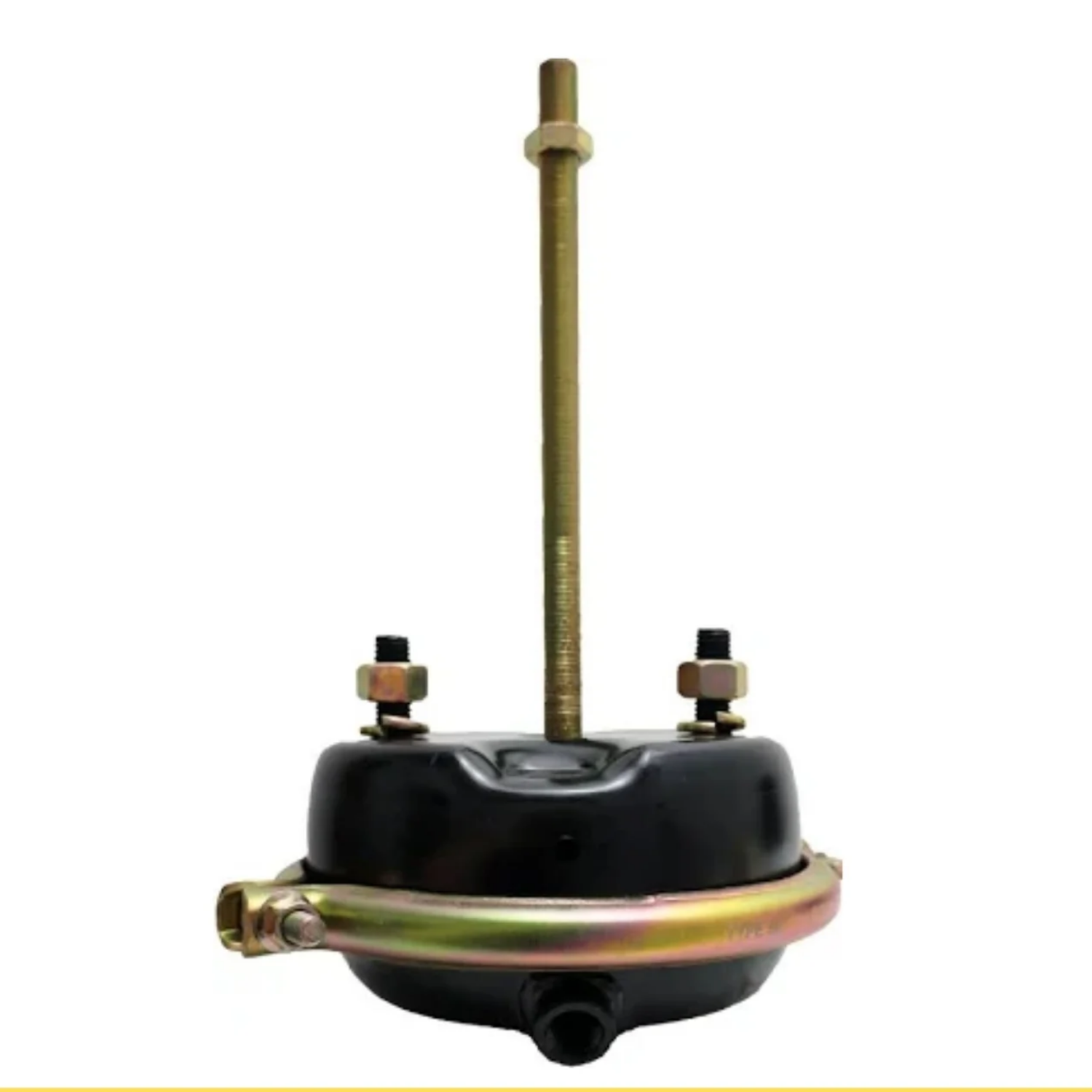

FL-30SC

Brake Chamber
4.5 Ratings
Part # FL-30SC
UPC/GTIN# 601959608851
Availability In Stock (5)
Specification Value
Part Number FL-30SC
Brand Fleetone
Product Type Service Brake Chamber
Service Size Type 30
Brake Type Drum
Stroke Type Long
Stroke Length 2.50 in (64 mm)
Pushrod Threads 5/8 in-18
Port Size 3/8 in-18
Air Port Threads 3/8-18 NPTF
Maximum Air Pressure 150 psi
Mounting Stud Spacing (Center to Center) 4.75 in
Mounting Stud Threads 5/8 in-11
Mounting Stud Length 1.50 in
Service Clampband Position 45°
Air Port Position 270°
Dimension at Service Clampband 10.2 in (259 mm)
Housing Material Steel, Powder Coated
Clevis Included No
Weight 12.78 lb
Special Features Orange Alert® Stroke Indicator, Self-piloting Dust Shield
  • Premium Type 30 long stroke service brake chamber featuring 2.50" stroke length for enhanced braking force
  • Designed with powder-coated steel housing and resistance-welded air ports for superior corrosion resistance
  • High-quality rubber diaphragm maintains flexibility in extreme temperatures down to -40°F
  • Engineered and tested in the USA to meet or exceed all SAE standards with 3-year warranty coverage
  • Includes caging bolt and Orange Alert® Stroke Indicator for easy brake adjustment verification

The FL-30SC Type 30 Long Stroke Service Brake Chamber from Fleetone delivers superior braking performance for heavy-duty commercial vehicles. This premium chamber transforms compressed air energy into precise braking force for semi trucks and heavy-duty applications. Constructed with powder-coated steel housing and 10-gauge flat bottom design, it offers exceptional durability and corrosion resistance.

The chamber features a 2.50" stroke length, 5/8-18 pushrod threads, and operates at pressures up to 150 psi. With its Orange Alert® Stroke Indicator, self-piloting dust shield, and USA-engineered design, this service chamber provides reliable performance for trailers, buses, and trucks in demanding conditions

Cross Reference / Part Interchange

Brand Part Number
Fleetone (OEM) FL-30SC
Automann 179SC30L
Bendix K025360
Bendix K025365
Haldex SC30L
Haldex SC30LCW
MGM Brakes 1431001
Power Products SC3000LS
Sealco 10900
TSB 30SCN3C
