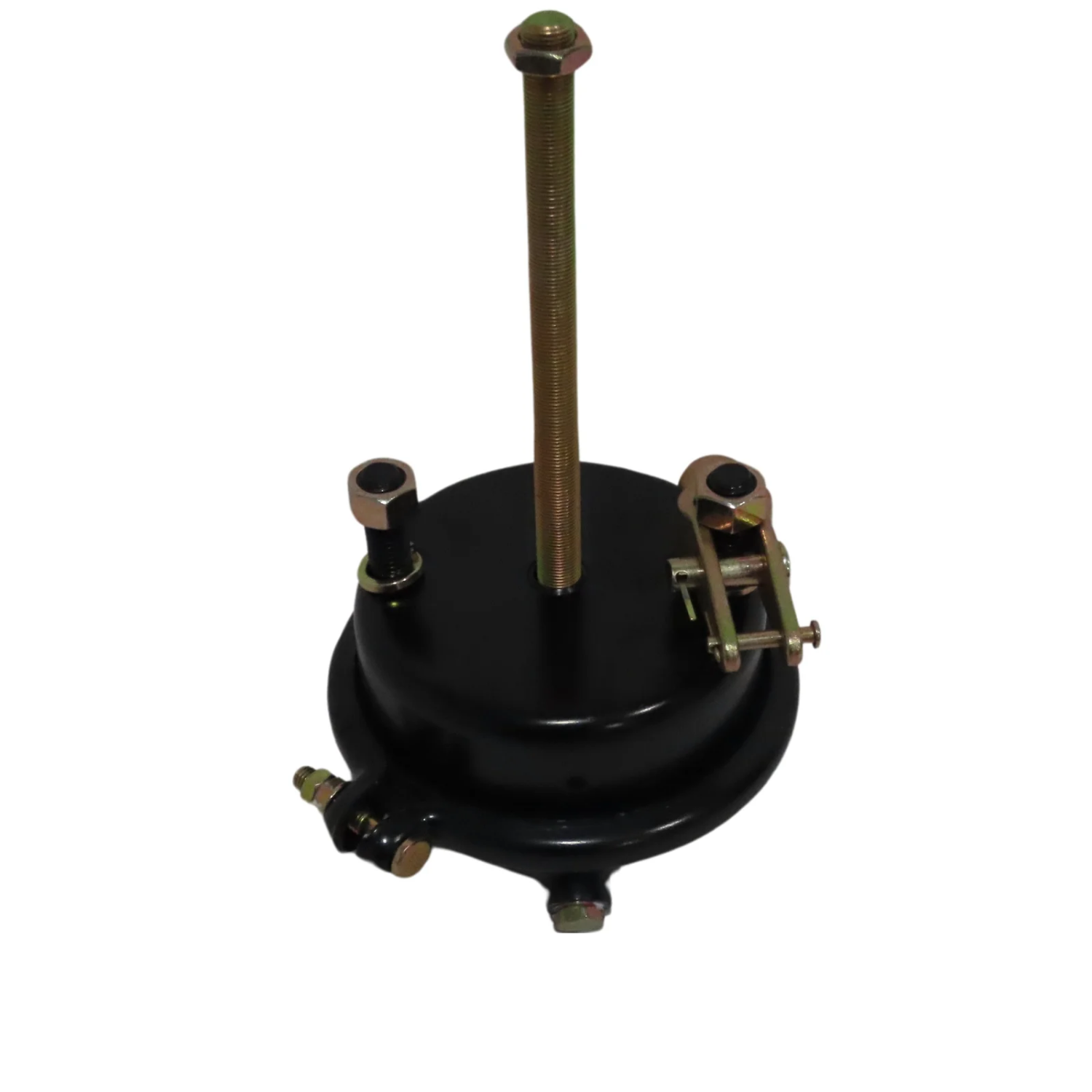

FL-12SC

Service Brake Chamber
4.5 Ratings
Part # FL-12SC
UPC/GTIN# 601959608882
Availability In Stock (20)
Specification Value
Part Number FL12SC
Brand Fleetone
Product Type Service Brake Chamber
Service Size Type 12
Brake Type Drum
Stroke Type Standard
Pushrod Threads 5/8 in-18
Port Size 3/8 in-18
Maximum Air Pressure 150 psi
Mounting Stud Spacing (Center to Center) 4.75 in
Mounting Stud Threads 5/8 in-11
Mounting Stud Length 1.50 in
Stroke Length 2.50 in
Service Clampband Position 45°
Air Port Position 270°
Weight 5 lbs
Clevis Included No
VMRS 013010034
Warranty 18 Months
  • Type 12 standard stroke service brake chamber designed as a direct replacement for all standard applications
  • Engineered to meet and exceed OEM requirements for heavy-duty vehicles including trailers, buses, and trucks
  • Features 5/8-18 pushrod threads and 3/8-18 ports with maximum operating pressure of 150 psi
  • Standard 4.75-inch mounting stud spacing with 5/8-11 threads for universal compatibility
  • Complete package includes mounting hardware and clevis assembly for straightforward installation

The FL12SC Type 12 Standard Stroke Service Brake Chamber from Fleetone delivers reliable braking performance for heavy-duty commercial vehicles. This direct replacement chamber transforms compressed air energy into precise braking force for drum brake systems. Constructed with high-quality materials that exceed OEM specifications, it provides the tensile strength and durability required for safe operation in demanding conditions.

The chamber features standard mounting dimensions with 4.75-inch center-to-center spacing, 5/8-18 pushrod threads, and operates at pressures up to 150 psi. Ideal for applications across a wide variety of heavy-duty vehicles, it comes complete with all necessary mounting hardware and an 18-month warranty.

Cross Reference / Part Interchange

Brand Part Number
OEM 12SC
Automann 179.SC12
Batco 05-112
Bendix 274420
Bendix 288795
Bendix 288796
Bendix 5007117
Bendix 5007117N
Bendix 800822
Bendix 800822BXW
Euclid E-12S
Euclid EBC12S
Freightliner HDX SC12
Genuine S-9812
Genuine S9812
Haldex 1200001
Haldex KN-36120
Haldex KN36012
Haldex MA-36120
Haldex SC12
Haldex SC1200
Leland Brake & Wheel Parts L1200SC
MGM Brakes 1412001
MGM Brakes C12
Power Products SC1200
ACDelco 1200
Anchor 10100
Centramatic 800822
Centric Parts 05112
Engine Control Systems 1200
LUK 05112
Orion Safety 30013
Orscheln Co 10100
PAI 0214-100
Parts Distribution T12
Perkins 7409674
ProLine HD Truck Parts PLBSC-12
Ranger Brake HD12S
Ranger Brake SC1200
Ranger Brake T12
Rockwell International R870012S
TCT 15012
TCT 15612
TSB 12SCN0C
Velvac 30013
