FL-3030SS
Short Stroke Brake Chamber
| Part # | FL-3030SS |
| UPC/GTIN# | 601959608868 |
| Availability | In Stock (10) |
| Specification | Details |
|---|---|
| Part Name | Short Stroke Brake Chamber (Type 3030) |
| Vehicle Model | Universal for Heavy-Duty Trucks |
| Year | Universal |
| Position | N/A |
| Lamp Type | N/A |
| Lens Material | N/A |
| Housing Material | N/A |
| Voltage | N/A |
| Wattage | N/A |
| Connector Type | 2 Ports NPT 3/8" |
| Mounting Type | N/A |
| DOT/SAE Compliance | N/A |
| Water Resistance | N/A |
| Operating Temperature | N/A |
| Lumen Output (LED Variant) | N/A |
| Compatibility | Compatible with standard heavy-duty truck brake systems |
| Package Contents | 1 x Short Stroke Brake Chamber |
| Warranty | 1-Year Unlimited Mile Warranty |
| Manufacturer | Fleetone |
| LED Modules | N/A |
| Electrical Connection | N/A |
| Mounting Holes | N/A |
| Background | N/A |
| Lamp Style | N/A |
| Visual Difference | N/A |
| Compliance | N/A |

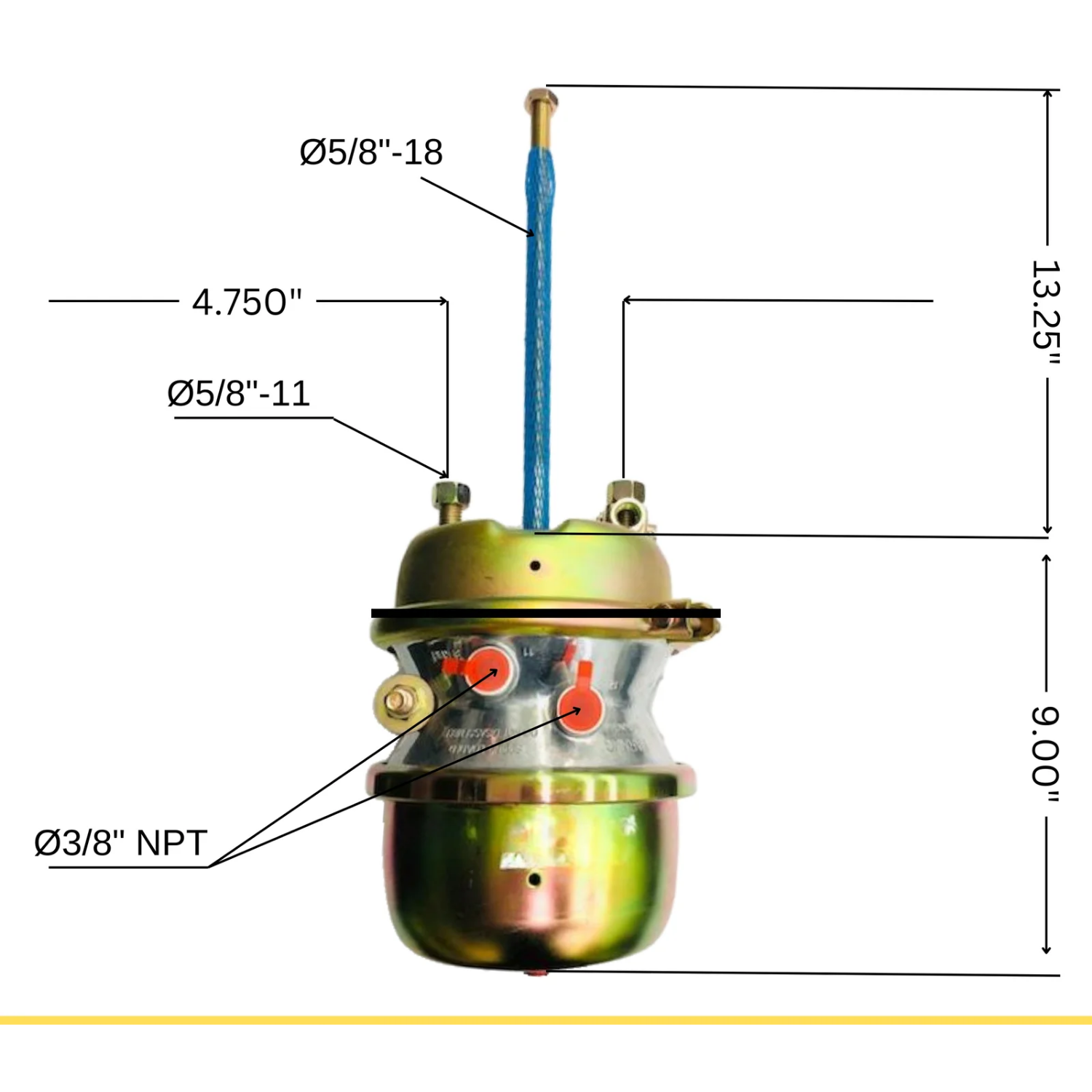

| Dimensions | Stroke Length: 2-1/2", Push Rod Length: 11-3/4", Weight: 18 lbs |
| Heating | N/A |
| Adjustability | Fixed |
| Weight | 18 lbs |
| Mirror Type | N/A |
| Brake Chamber Type | Type 3030 (30/30) |
| Stroke Type | Short Stroke |
| Pushrod Stroke | 3" |
| Bolt Thread | 5/8"-11 UNC |
| Pushrod Length | 3-3/4" |
| Sold Individually | Yes |
The Short Stroke Brake Chamber (Type 3030) is a heavy-duty air brake chamber with a 2.5" stroke and 11-3/4" pushrod length, designed for trucks, featuring a 1-year unlimited mile warranty and sold individually.
Cross Reference / Part Interchange
| Brand Name | Part Number |
|---|---|
| Automann | 179SB3030S |
| Bendix | 5007132N |
| Bendix | 800831 |
| Bendix | EPRO3030STD78 |
| Bendix | K022884 |
| Bendix | K129605 |
| Bendix | NT3030STD120 |
| Bendix | NT3030STD78 |
| Bendix | NT3030STD78DS |
| Bendix | NT3030STD78TC |
| Bosal | 15445 |
| Carlson | 12560 |
| Dayco | 15445 |
| Eaton | 15446 |
| Euclid | EBC3030C |
| Euclid | EGC3030 |
| Global Parts Distributors LLC | 3030C |
| Grand General | 10326 |
| Haldex | GC3030 |
| Haldex | GP3030 |
| Haldex | LC3030P40 |
| HDValue | HDVSTD30UC |
| MGM Brakes | 3430051 |
| MGM Brakes | 3430051X |
| MGM Brakes | 3431051 |
| MGM Brakes | 3630051 |
| Milwaukee | 286122 |
| Motorad | 3030 |
| Non-Branded | FLT3030SCB20 |
| Orion Safety | 10326 |
| OTR | OTR3030PBK |
| OTR | OTR3030SB |
| OTR | OTR3030SB2 |
| Power Products | 3030SB |
| Power Products | BTS3030 |
| Ranger Brake | 3030ESLR |
| Ranger Brake | 3030T |
| SKF | 12560 |
| Timken | 30304 |
| TSB | 3030TL22412 |
| Unknown | GLCC3030 |
| Unknown | GLWCC3030 |
