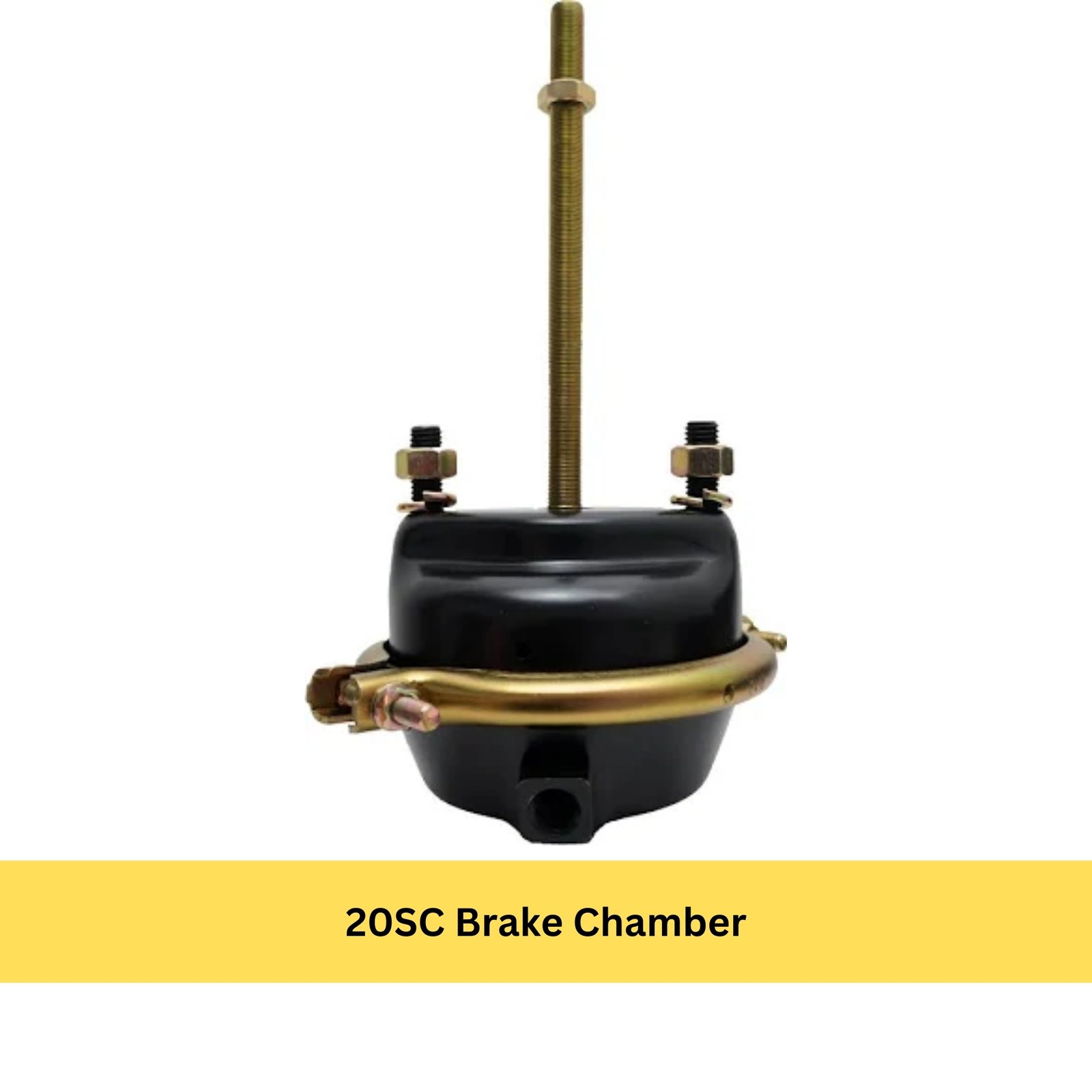

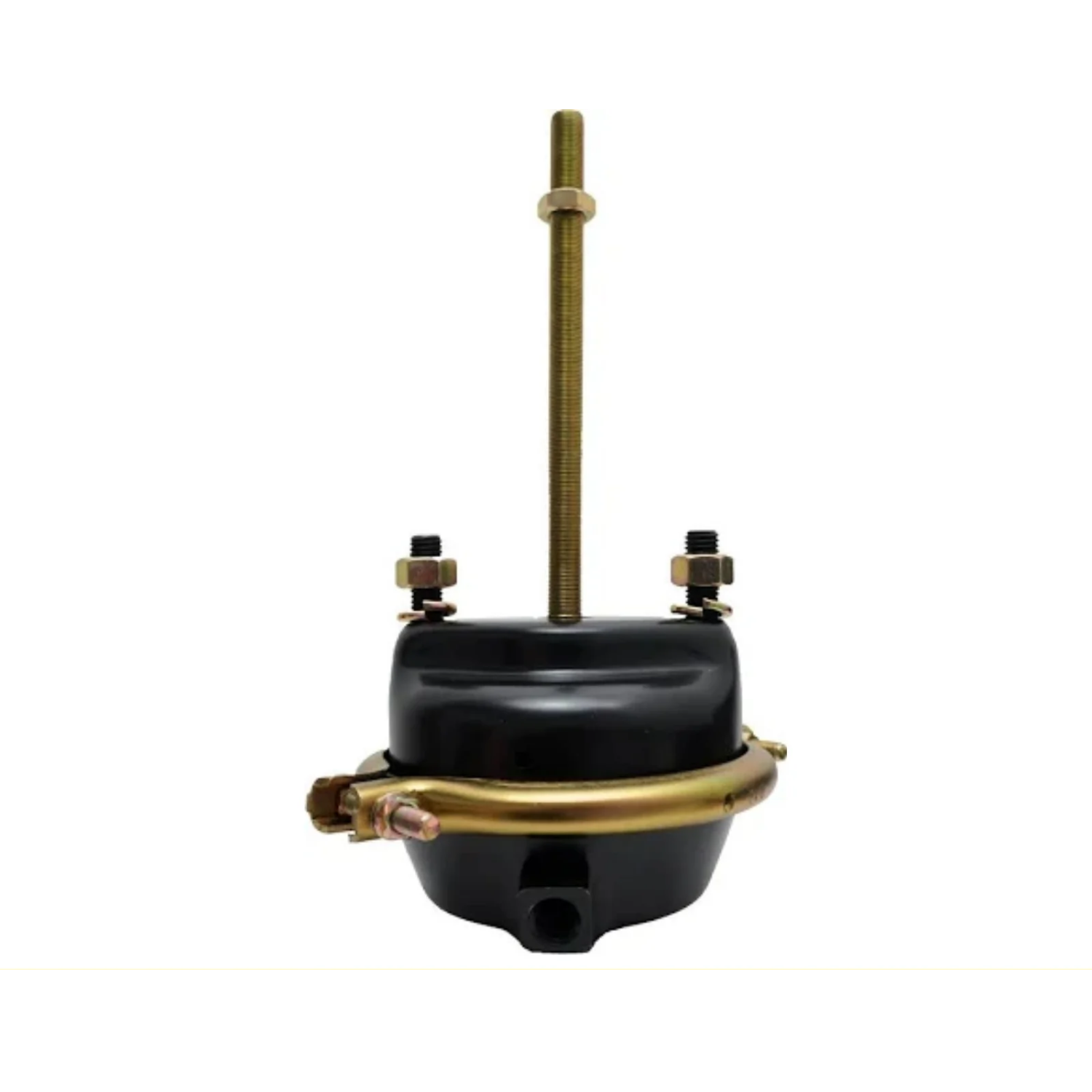

FL-20SC

Brake Chamber
4.5 Ratings
Part # FL-20SC
UPC/GTIN# 601959608837
Availability In Stock (4)
Specification Value
Part Number FL-20SC
Brand Fleetone
Product Type Service Brake Chamber
Chamber Type Type 20
Stroke Type Standard
Service Stroke 2.25 in
Service Force 1850 lbs at 100 psi
Air Port Thread Diameter 3/8-18 NPTF
Push Rod Thread 5/8-18
Clevis Size 5/8-18
Clevis Pin 1/2 in
Mount Hole Center to Center 4.75 in
Mounting Bolt Thread Diameter 5/8 x 11 in
Chamber Height 3.875 in
Dimensions (L x W x H) 8.5 x 12.5 x 7 in
Weight 10 lbs
VMRS Code 013004027
Warranty Period 12 months
  • Type 20 service brake chamber designed for S-Cam air brake systems with 2.25" standard stroke
  • Direct OEM replacement providing 1850 lbs of service force at 100 psi for reliable braking performance
  • Features 3/8-18 NPTF inlet ports and 5/8-18 push rod thread for industry-standard compatibility
  • Includes complete mounting hardware and clevis assembly for straightforward installation
  • Compatible with all major truck air brake systems across multiple manufacturers

The FL-20SC Type 20 Service Brake Chamber from Fleetone delivers reliable braking performance for heavy-duty commercial vehicles equipped with S-Cam air brake systems. This direct replacement chamber features a standard 2.25-inch stroke design that generates 1850 pounds of service force at 100 psi, ensuring consistent stopping power under demanding conditions.

Engineered with 3/8-18 NPTF inlet ports and industry-standard mounting dimensions (4.75-inch center-to-center), this chamber includes all necessary mounting hardware and clevis assembly for straightforward installation. Backed by a 12-month warranty, the FL-20SC offers fleets and service providers a dependable, cost-effective solution for brake system maintenance and repairs.

Cross Reference / Part Interchange

Brand Part Number
(OEM) 20SC
Bendix 274422
Bendix 288803
Bendix 288804
Bendix 5007119
Bendix 5008635
Bendix 800824
Bendix 802990
Bendix BW 802990
Bendix K020360
MGM Brakes 1420001
MGM Brakes C20
Haldex 2000001
Haldex 52000001
Haldex HDX SC20
Haldex KN-36200
Haldex KN36200
Haldex MA-36200
Haldex MIDSC20
Haldex SC20
Haldex SC20L
Haldex SC20LCW
Automann 179.SC20
Automann 179.SC20L
Automann 179.SC20LW225
Automann 55541420001
Automann 745800824
Euclid E-20S
Meritor R870020
Meritor RC SC20
OTR 20SCN1
OTR SC2000
World American WAKN36200
Navistar FLTS20S20
Navistar ZAJ1420001
Freightliner HDX MA36200
Freightliner HDX SC20L
Freightliner HDX SC20LCW
Mack 19-QE-465R-P3
Mack 19QE465RP3
Volvo Truck MGM1420001
PAI 0220-100
Batco 05-120
Velvac 30017
Genuine Newstar S-9814
Genuine Newstar S9814
Genuine Newstar XX-20SC
Leland Brake & Wheel Parts 2000SC
Paccar Parts SBT20
Rockwell International E20S
Rockwell International R870020S
Torque TR20SC
BWP M-20SC
