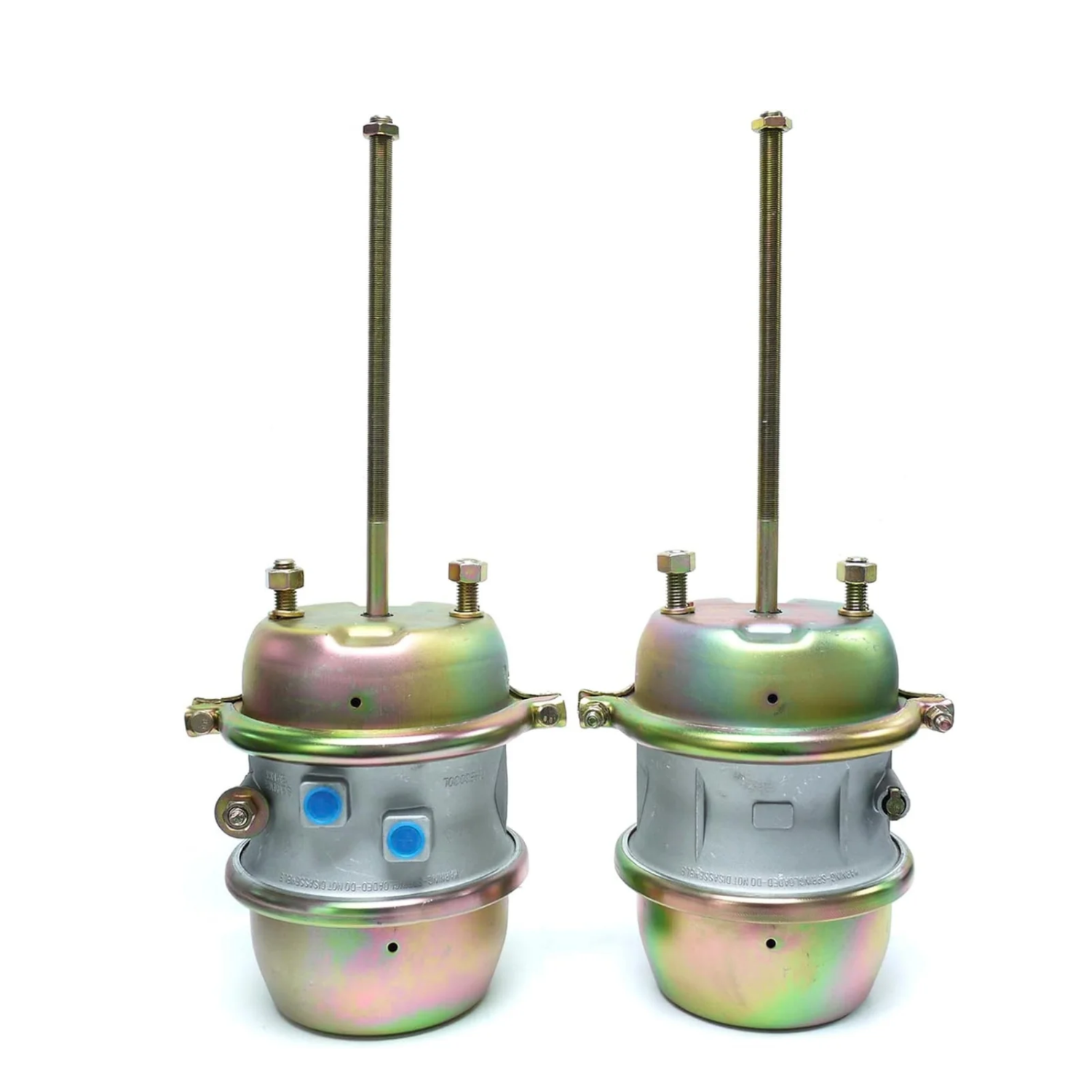

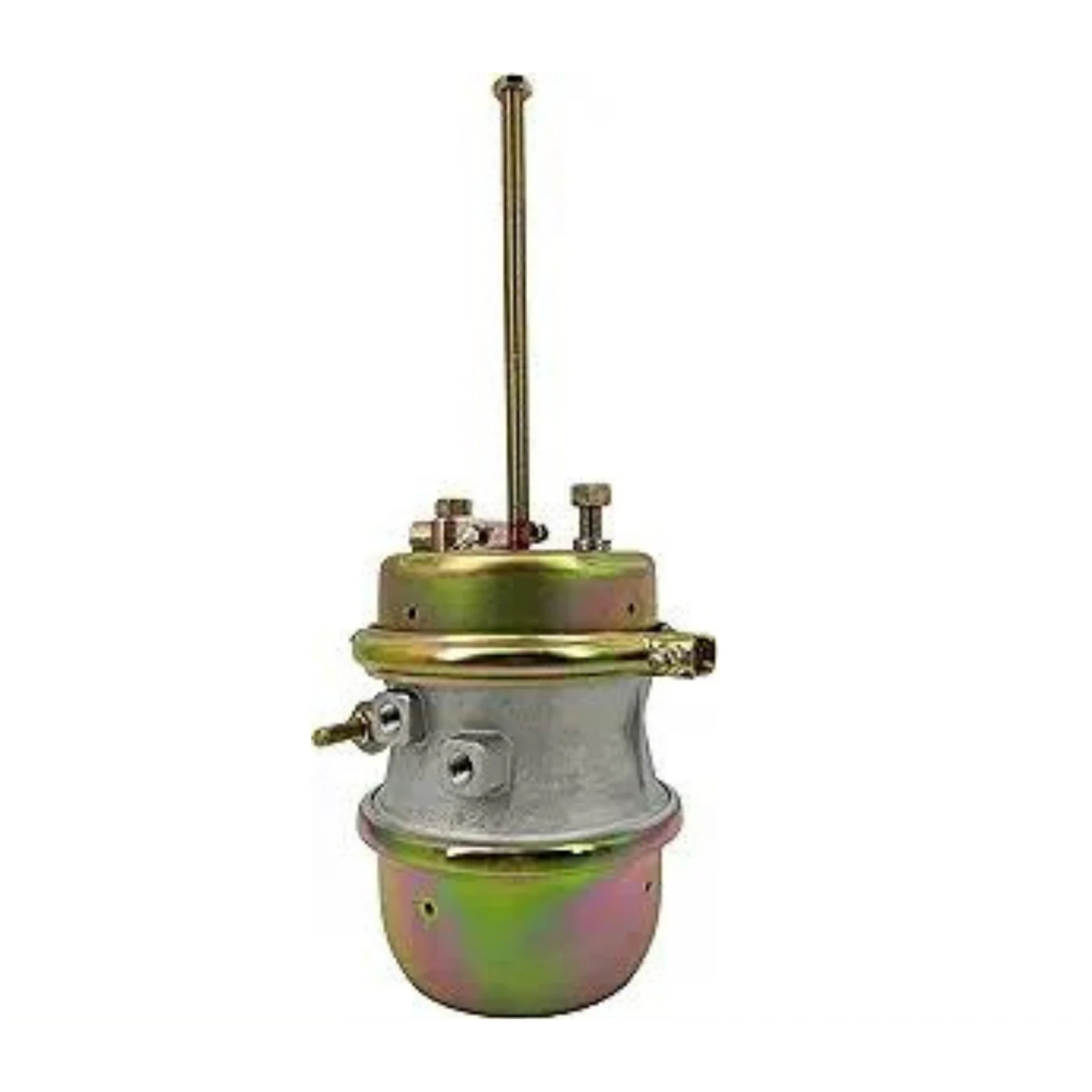

FL-3030LS

Long Stroke Brake Chamber
4.5 Ratings
Part # FL-3030LS
UPC/GTIN# 601959608875
Availability In Stock (4)
Specification Value
Part Number FL-3030LS
Brand Fleetone
Product Type Spring Brake Chamber
Chamber Type Spring Combination
Service Size Type 30
Spring Size Type 30
Brake Type Drum
Stroke Type Long

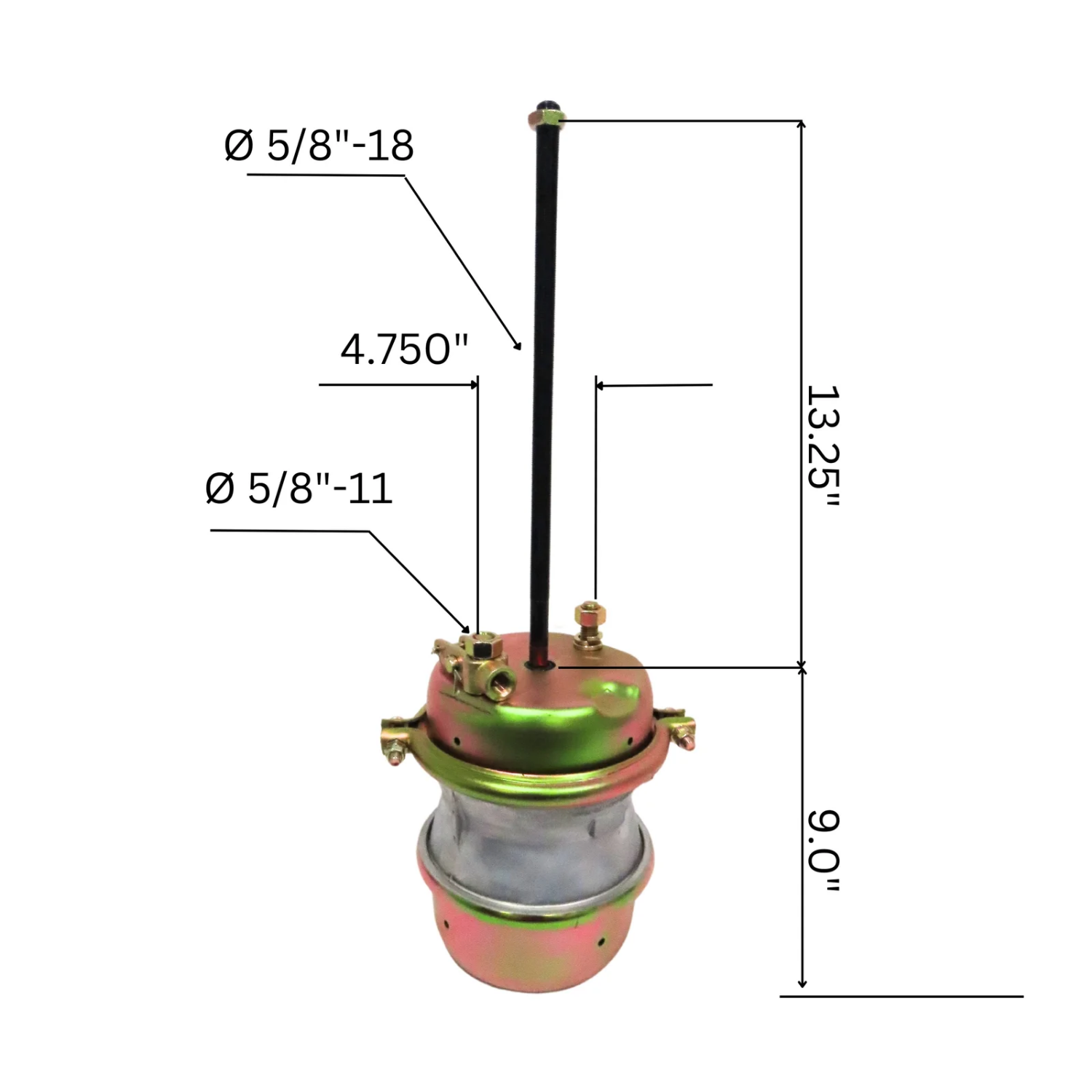

Stroke Length 3.00 in
Air Port Threads 3/8-18 NPTF
Pushrod Threads 5/8 in-18
Pushrod Length 15 in
Clevis Included No
Clevis Type Threaded
Mounting Stud Spacing (Center to Center) 4.75 in
Mounting Stud Threads 5/8 in-11
Spring Housing Outer Diameter 9.00 in
Air Port Position 90°
Piggyback Length 6.80 in
Volume Displacement 108.3 (at 100 PSI)
VMRS 013000000
Warranty 3 Year
Application Trailer
  • Premium 30/30 long stroke combination spring brake with 3.00" service stroke for enhanced braking power
  • Features 15-inch push rod with 5/8-18 threads engineered for trailer applications with drum brakes
  • Advanced dust shield design prevents contamination from dirt, sand, and moisture for superior corrosion resistance
  • Integrally machined center seal provides double O-ring sealing technology for extended service life
  • Meets or exceeds all SAE standards with heavy-duty phosphate-coated return springs tested to 1,000,000 cycles

The FL-3030LS 30/30 Long Stroke Spring Brake Chamber delivers exceptional braking performance for heavy-duty trailer applications. This premium combination chamber features a 3.00-inch long stroke design with 108.3 volume displacement at 100 PSI, providing consistent braking force in demanding conditions.

Constructed with 10-gauge housing and non-pressure epoxy coating, it offers superior corrosion resistance, while the integrated dust shield prevents contamination. The reinforced mounting studs and thick steel push rod-plate exceed OE standards, ensuring reliable operation. Engineered, tooled, and tested in the USA, this chamber includes a caging bolt and comes with a comprehensive 3-year warranty for long-term dependability.

Cross Reference / Part Interchange

Brand Part Number
OEM 3030LS
Proline HD PLBTS3030LS-15
Pro-Par BC-3030LS
OTR OTR3030SB-LS
Ranger Brake BTS-3030LS
Ranger Brake 1010456
MGM Brakes 3230051
MGM Brakes 3230051X
Midland GC3030L
Haldex GC3030
Haldex GC3030L
Haldex LCP3030L
Bendix 5010435
Bendix 802541
Bendix BNAR5013841
Bendix EPRO3030ELS80
Bendix K022884
Bendix NT3030ELS80
Bendix NT3030ELS80DS
Bendix NT3030ELS80TC
Automann 179.SB3030SL
AL-KO S17204
Euclid EBC3030CEL
TSB 3030TN3C
TSB 3030TN3ULPC
Delco-Remy 12960
New Life 1010476
