FL-16SC

Brake Chamber
4.5 Ratings
Part # FL-16SC
UPC/GTIN# 601959608820
Availability In Stock (6)

Specification

Value

Part Number

FL-16SC

MPN #

SC1600

Product Type

Service Brake Chamber

Service Size Type

16

Stroke Type

Standard

Pushrod Threads

1/2 in-20

Stroke Length

2.25 in

Port Size

1/4 in-18

Brake Type

Drum

Clevis Included

No

Mounting Stud Threads

7/16 in-20

Mounting Stud Length

1.10 in

Mounting Stud Spacing

3.00 in (Center to Center)

Service Clampband Position

225°

Air Port Position

270°

Maximum Air Pressure

150 psi

Weight

6.83 lb

VMRS

13010034

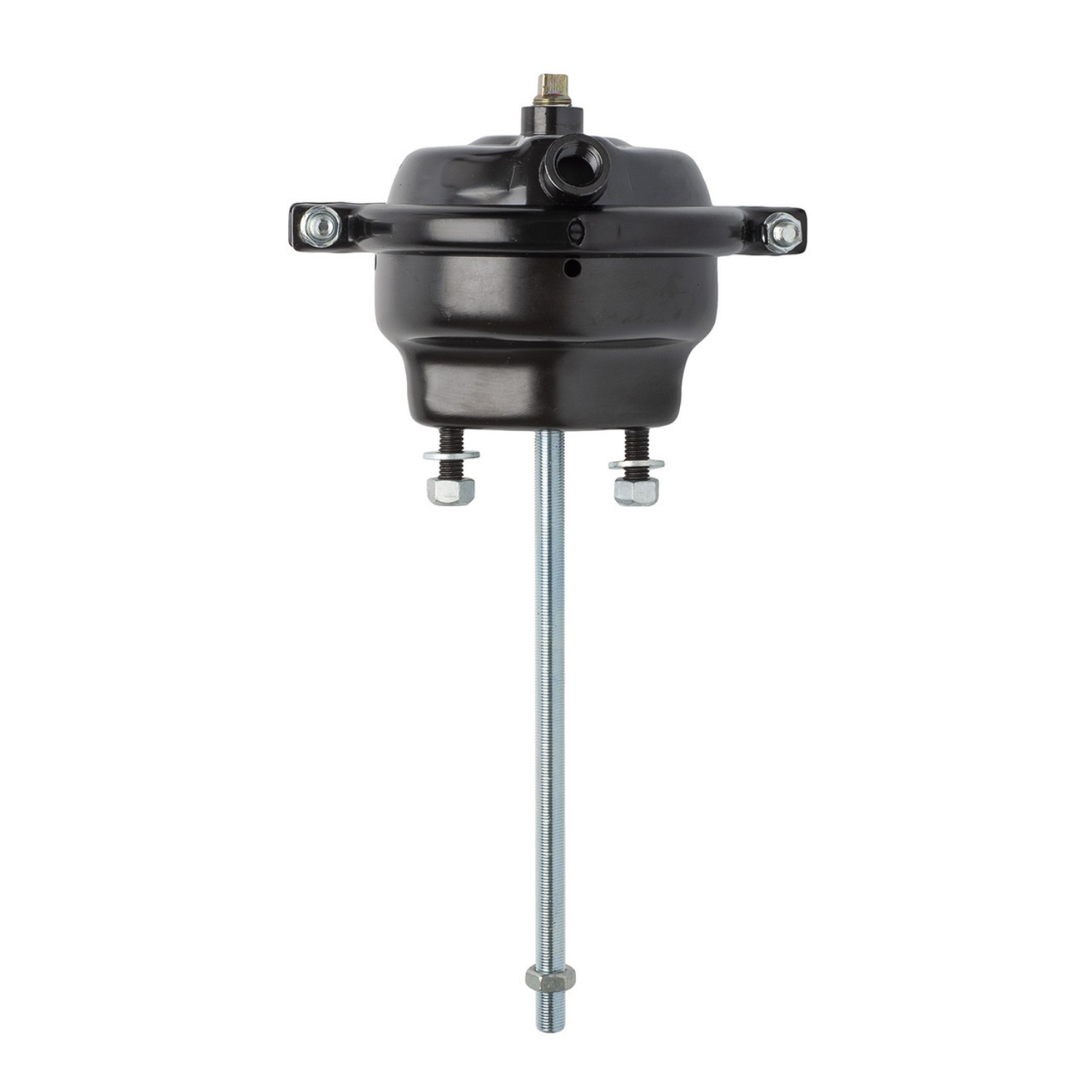

  • Premium Type 16 Standard Stroke service brake chamber designed specifically for heavy-duty vehicles including trailers, buses, and trucks
  • Exceeds OEM requirements with high-quality construction that efficiently transforms air compression into precise braking force
  • Maximum operating pressure of 150 psi with 2.25" stroke length for optimal performance in demanding conditions
  • Designed, tooled, and tested in the USA with all SAE standards not just met, but surpassed
  • Includes caging bolt and comes with 3-year warranty for long-term reliability and peace of mind

The Power Products Type 16 Standard Stroke Service Brake Chamber (FL-16SC) delivers exceptional braking performance for heavy-duty applications. Engineered to exceed OEM specifications, this chamber efficiently converts air pressure into precise braking force for your semi truck's braking system.

The high-quality construction provides the tensile strength needed for safe operation across diverse commercial vehicles, including trailers, buses, and trucks. With a maximum pressure rating of 150 psi and featuring USA design and manufacturing, this service chamber comes complete with a caging bolt and 3-year warranty. FleetPride's commitment to quality makes this the reliable choice for heavy-duty braking applications.

Cross Reference / Part Interchange

Brand

Part Number

OEM

16SC

POWER PRODUCTS

SC1600

AL-KO KOBER CORP DIV OF HAYES AXLE

59813

AUTOMANN

179SC16A

BALDWIN

16

BENDIX

5007118N

BENDIX

800823

CHAM-CAL ENGINEERING

10200

CRC

10200

DAYTON PARTS

05116

EUCLID

E16S

EUCLID

ERC16S

HALDEX

SC16

HD MANUFACTURING

150160

LUK

05116

MGM BRAKES

1416001

MOTORAD

T16

NAVISTAR

ZAJ1416001

OTR

OTRSC1600

RANGER BRAKE

10250

RANGER BRAKE

HD16S

SKF

30015

SKF

70016

TIMKEN CO., THE

16

TSB

16SCN1C

TYC

30015

UNKNOWN

GLSC16

BATCO

05-116

LELAND BRAKE & WHEEL PARTS

1600SC

OTR

16SC

HALDEX

KN36016

HALDEX

N36216CL

MERITOR

R870016

WORLD AMERICAN

WAKN36016
