FL-20304

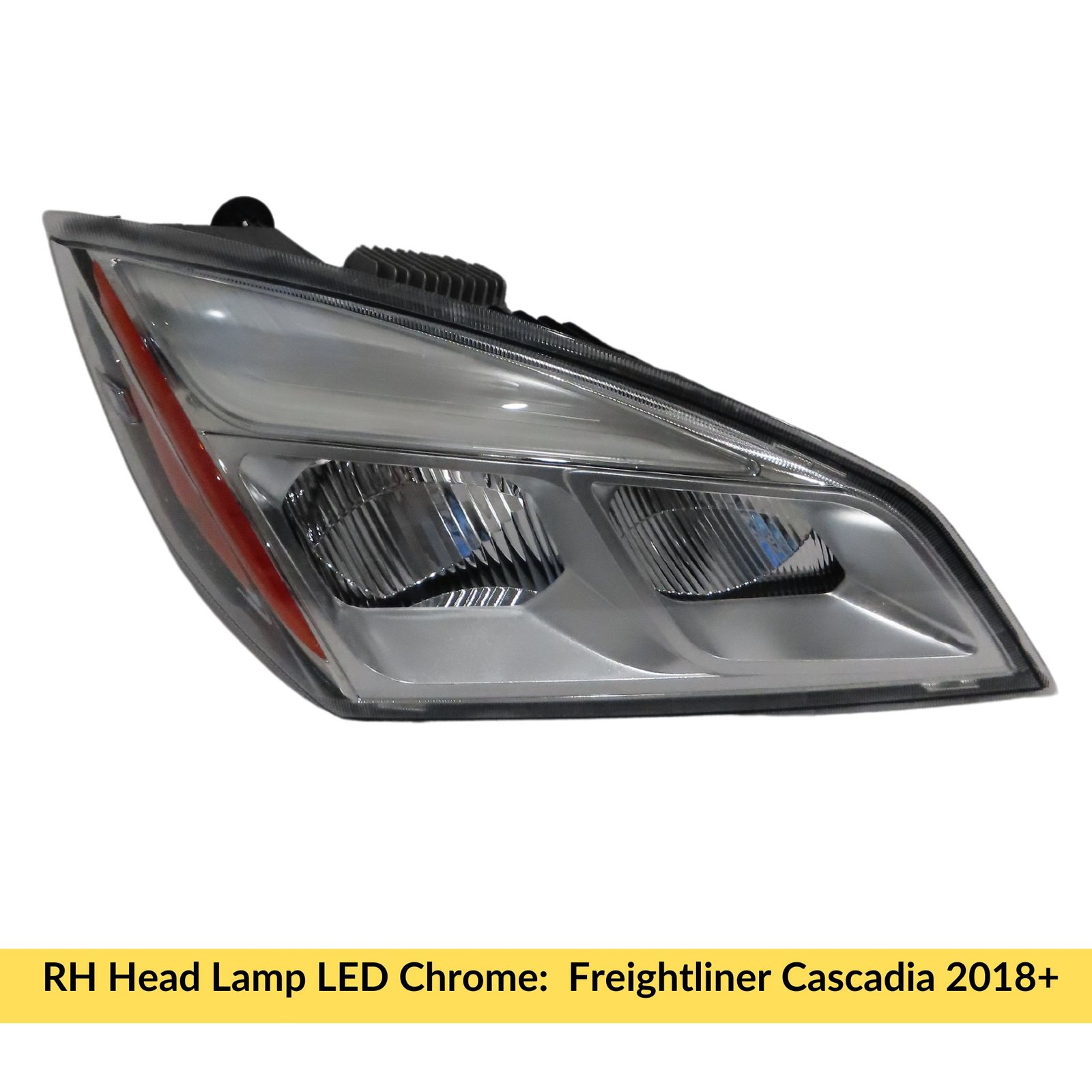

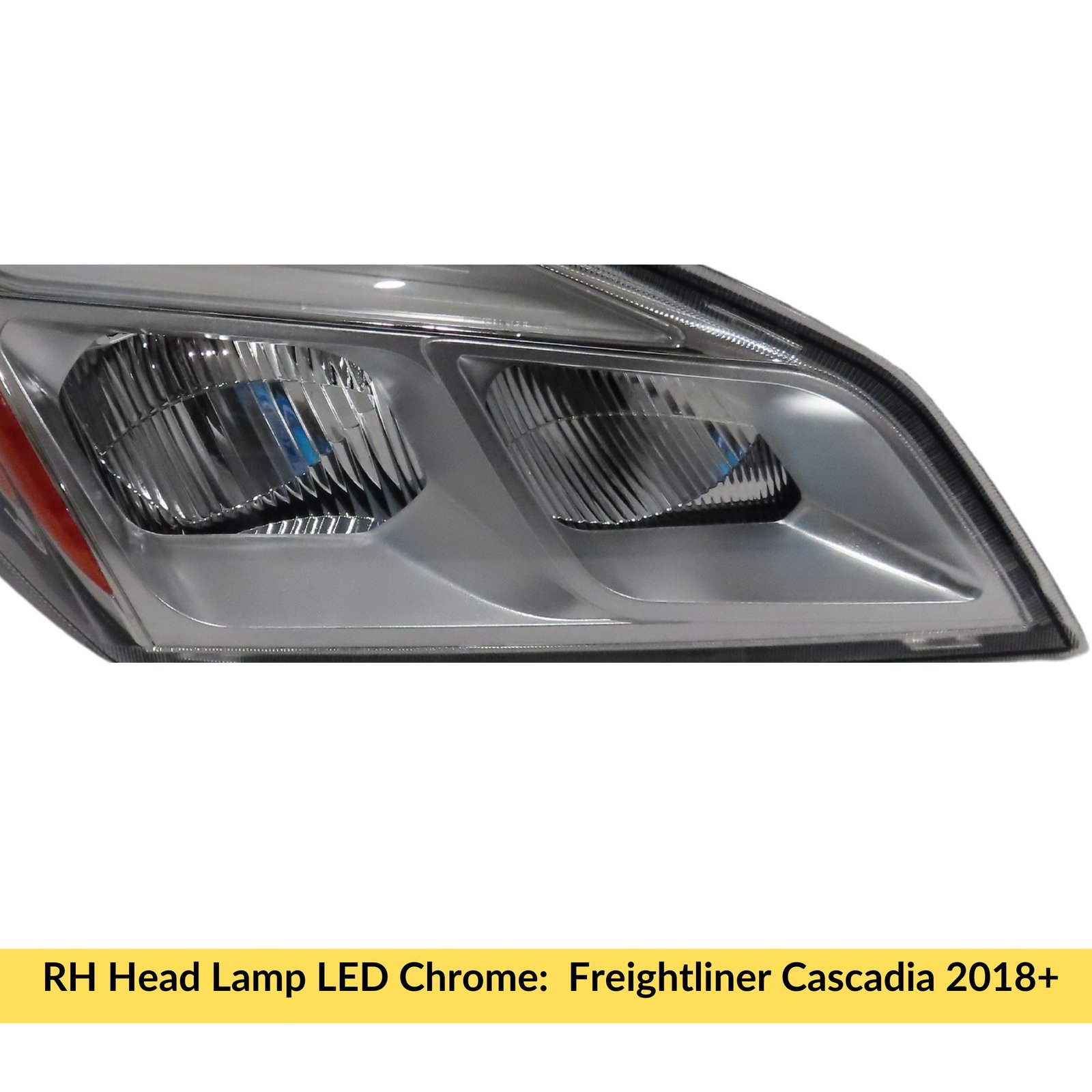

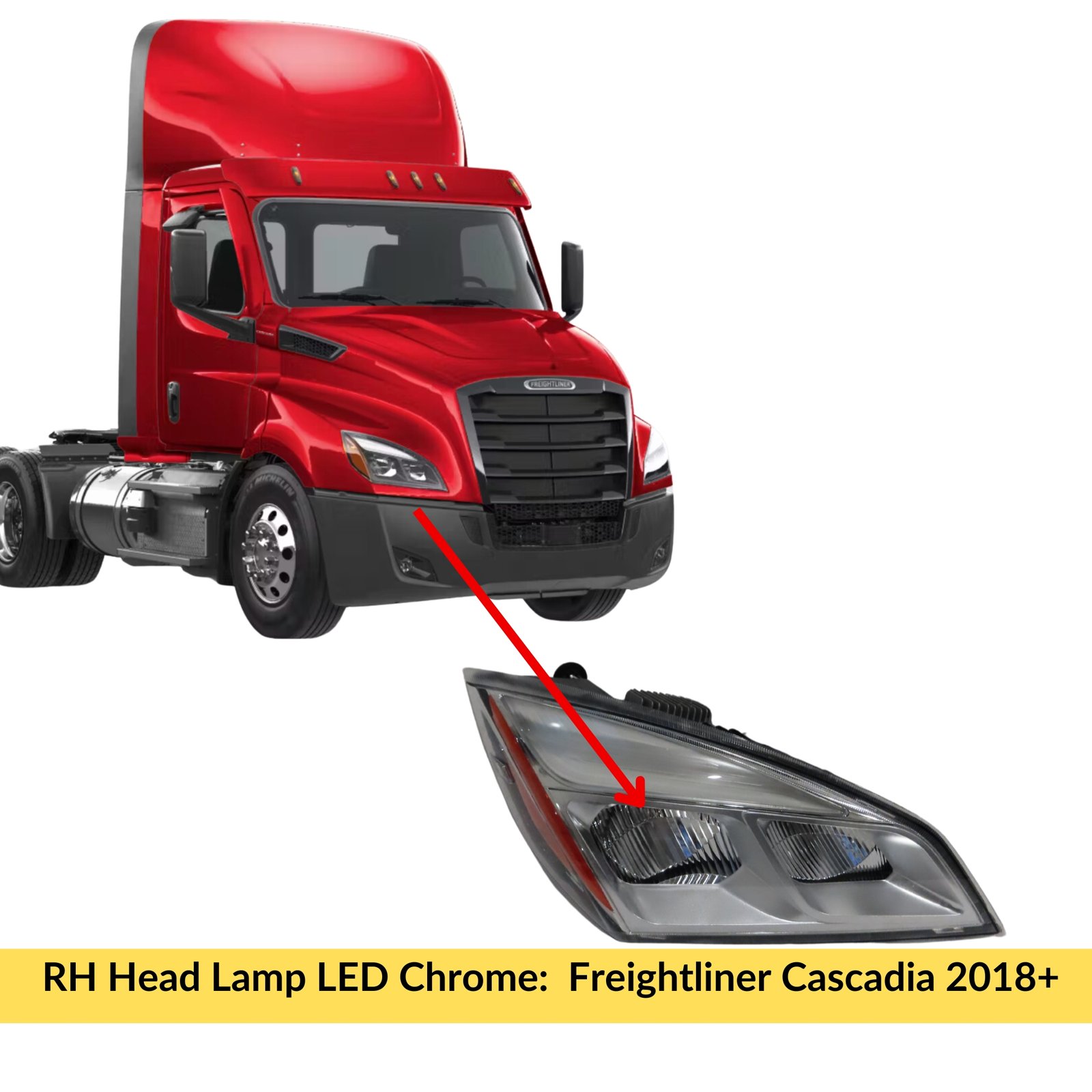

RH Head Lamp LED Chrome Freightliner Cascadia 2018+
| Part # | FL-20304 |
| UPC/GTIN# | 601961384781 |
| Availability | In Stock (8) |
| Specification | Details |
|---|---|
| Part Name | RH Head Lamp LED Chrome Freightliner Cascadia 2018+ |
| Vehicle Model | Freightliner Cascadia |
| Year | 2018+ |
| Position | Front, RH (Right-Hand, Passenger Side) |
| Lamp Type | LED Projection Headlight with White LED Position Light |
| Lens Material | Smoke Lens |
| Housing Material | Semi-Gloss Black Inner Housing with Chrome Finish |
| Voltage | 12V DC Input |
| Wattage | Low Beam: 2.7 Amps, High Beam: 2.39 Amps |
| Connector Type | Factory LED Equipped Wiring Harness Connector (Plug & Play) |
| Mounting Type | Direct OEM Replacement, Easy Installation |
| DOT/SAE Compliance | DOT / SAE, FMVSS 108 Compliant |
| Water Resistance | N/A |
| Operating Temperature | N/A |
| Lumen Output (LED Variant) | Low Beam: 1600 Lumens (7000K), High Beam: 1200 Lumens (6000K) |
| Compatibility | Fits new generation body style Freightliner Cascadia 2018-2021, not compatible with halogen-equipped models |
| Package Contents | 1 x RH LED Chrome Headlamp Assembly |
| Warranty | 60 Days Manufacturer Warranty |
| Manufacturer | Fleetone |
| LED Modules | Built-In LEDs |
| Electrical Connection | 12V DC Input, Plug & Play with Factory Wiring |
| Mounting Holes | N/A |
| Background | Semi-Gloss Black Inner Housing |
| Lamp Style | LED Projection Style with White LED Position Light |
| Visual Difference | Patent-pending lens design for improved look and visibility |
| Compliance | DOT / SAE, FMVSS 108 Compliant |
| Dimensions | N/A |
| Heating | N/A |
| Adjustability | Fixed |
| Weight | N/A |
| Mirror Type | N/A |
Offering superior visibility, the low beam emits 1650 lumens with a 1.58 amp draw, while the high beam delivers 1300 lumens at 1.28 amps. These headlights are not only a visual upgrade but also meet DOT/SAE and FMVSS 108 standards for safety and reliability.
Cross Reference / Part Interchange
| Freightliner | A06-51907-006 |
| Freightliner | A06-51907-007 |
