4.8 Ratings
Lighting

FL-20302

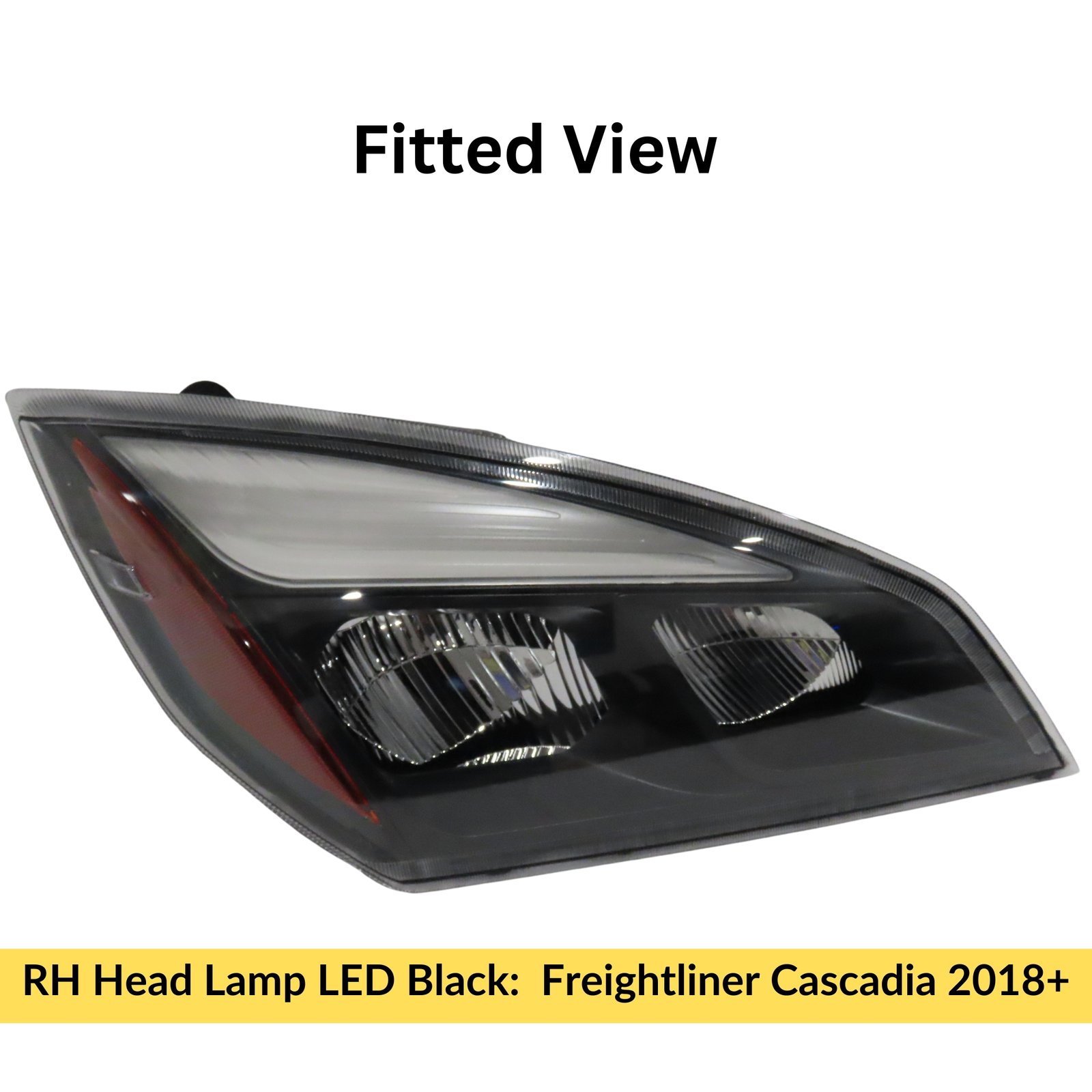

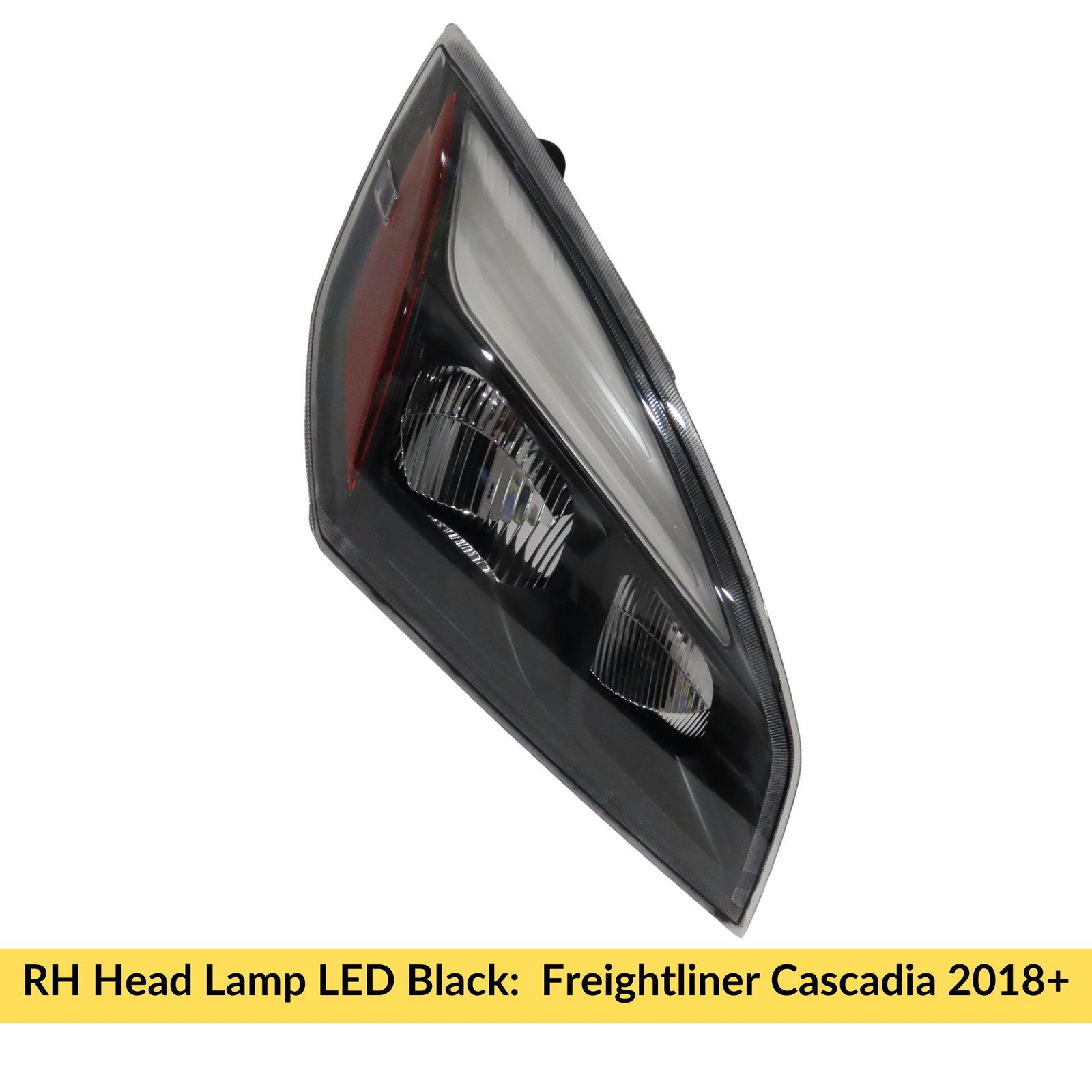

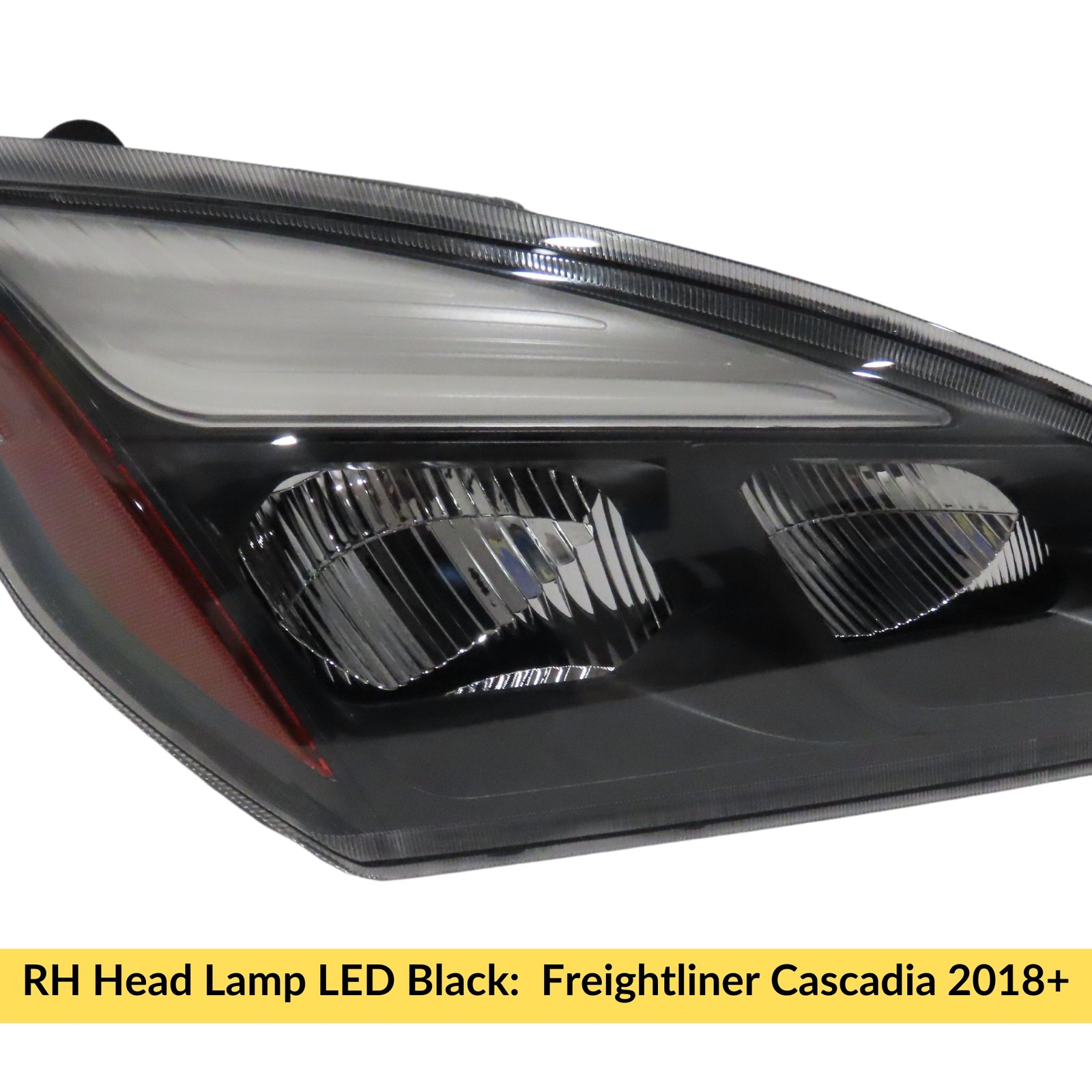

RH Head Lamp LED Black Freightliner Cascadia 2018+
Login to View the Price
Brand Fleetone
Part # FL-20302
UPC Code# 601961384767
Availability
  • 20
Features
Specification Details
Part Name RH Head Lamp LED Black Freightliner Cascadia 2018+
Vehicle Model Freightliner Cascadia
Year 2018+
Position RH (Right-Hand, Passenger Side)
Lamp Type LED (High Beam: 1400 Lumens, Low Beam: 1400 Lumens)
Lens Material N/A
Housing Material Black Housing
Voltage N/A
Wattage 13.5W (for both Low and High Beams)
Connector Type 8 Pin Electrical Connection
Mounting Type 4 Mounting Threaded Studs, Plug and Play Installation
DOT/SAE Compliance DOT / SAE Compliant
Water Resistance IP54 Waterproof
Operating Temperature N/A
Lumen Output (LED Variant) Low Beam: 1400 Lumens, High Beam: 1400 Lumens

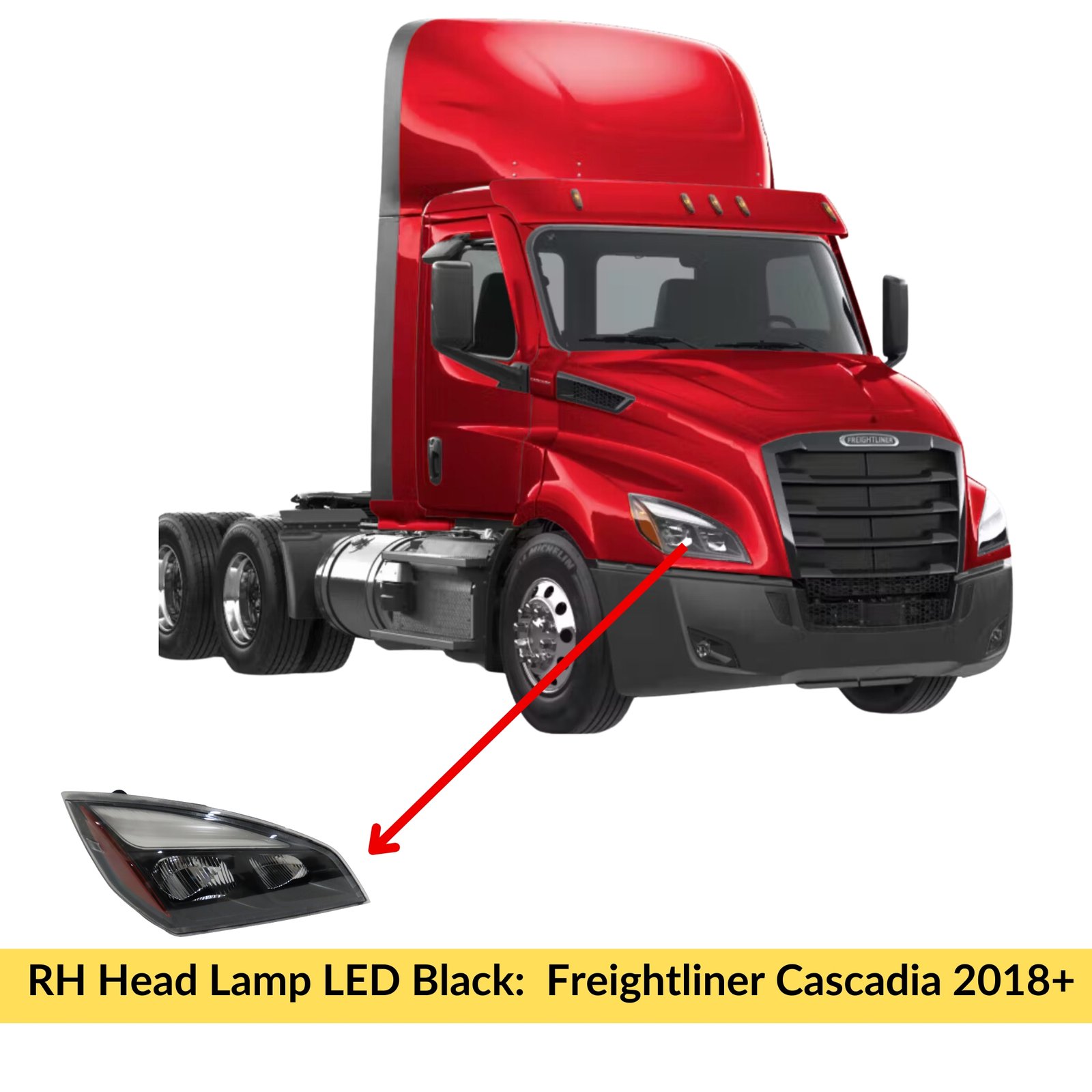

Compatibility Direct replacement for Freightliner Cascadia 2018+
Package Contents 1 x RH LED Headlamp Black Assembly
Warranty 365 Days Warranty
Manufacturer Fleetone
LED Modules High-Quality LED Modules with Internal Cooling
Electrical Connection 8 Pin Electrical Connection, 3157 Bulb for Daytime Running Light / Turn Signal Light
Mounting Holes 4 Threaded Studs
Background Black Housing with Decorative Stripes
Lamp Style Projection Style Lamp with Daytime Running Light
Visual Difference Slight visual difference from OEM; recommended to replace in pairs
Compliance DOT / SAE Compliant
Dimensions Length: 17.28", Width: 13.42"
Heating N/A
Adjustability Fixed
Weight N/A
Mirror Type N/A

Description

The Freightliner Cascadia (2018-2024) Full LED Headlamp, available for both the left driver side and right passenger side, delivers superior visibility and safety for confident driving. Featuring advanced LED technology, this headlamp provides exceptional brightness and clarity, significantly outperforming traditional halogen lamps. It cuts through darkness, fog, and adverse weather conditions, ensuring a well-lit path for safer travels.

Built with premium materials, including impact-resistant lenses and corrosion-resistant housing, this headlamp is engineered to withstand extreme weather conditions and long-haul journeys. Its robust durability ensures reliable performance mile after mile, making it an ideal solution for professional truckers and fleet managers.

Designed for effortless installation, the headlamp seamlessly integrates into your Freightliner Cascadia without the need for complex modifications. Its sleek and modern design enhances the truck’s exterior, adding a touch of sophistication to the vehicle’s look.

Moreover, this LED headlamp is energy-efficient, reducing power consumption compared to halogen lamps, which optimizes fuel efficiency and extends the life of your vehicle’s electrical system. DOT-compliant and suitable for various driving environments, it’s the perfect lighting solution for enhanced safety and visibility on the road.

Cross Reference/Part Interchange

Freightliner

A66-03653-003 (replaced with A66-03653-005)

Industry Number

33G-2002R-AS, PRO03653003, ATP29316, TD01-02-012BR-12, A66-03653-003KTP, MPGS-29316, S A66-03653-003, ATX29316, GPOA66-03653-003, A66-03653-003C8T, A66-03653-003-RC

Newstar

S-29316, S-29439
