FL-151904

• Cooling architecture: Down-flow design directs coolant across the 35.8 × 38.6 in core, matching OEM hose routing on Cascadia and M2-112 chassis.
• Engine compatibility: Sized for Detroit DD13 & DD15 powertrains up to 505 HP; maintains charge-air and EGR thermal margins required by EPA13-plus calibrations.
• Lightweight construction: Aluminum core with plastic tanks trims weight versus copper/brass units while delivering equal heat rejection—supporting the Cascadia’s fuel-efficiency targets.

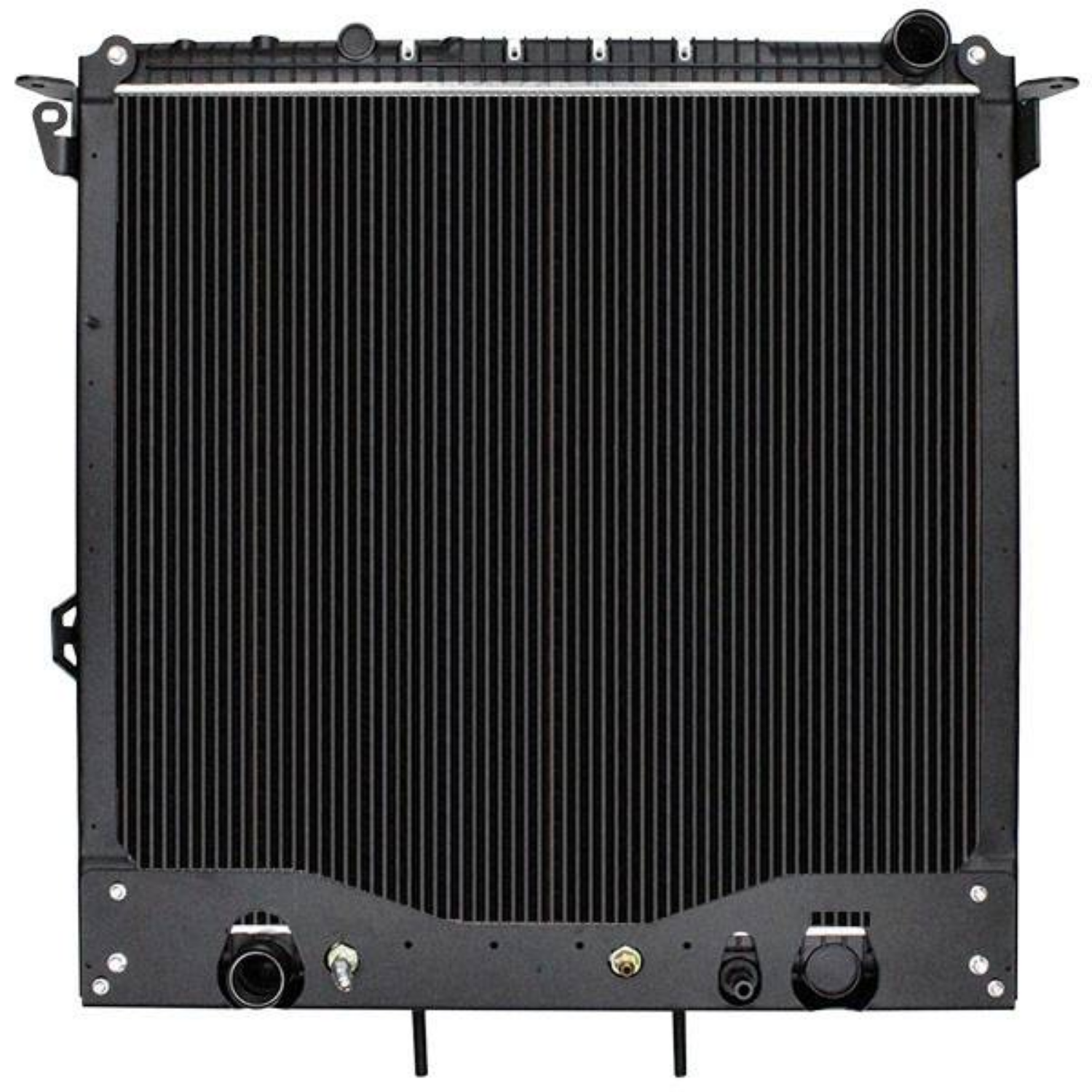

• Service flexibility: Order bare (reuse factory frame) or framed variants for collision repairs; bottom plate cooler version simplifies plumbing when transmission or engine-oil circuits share the radiator.
• Remote surge tank: Eliminating a filler neck lowers the radiator top tank, allowing the Cascadia’s sloped hood and improving forward visibility.

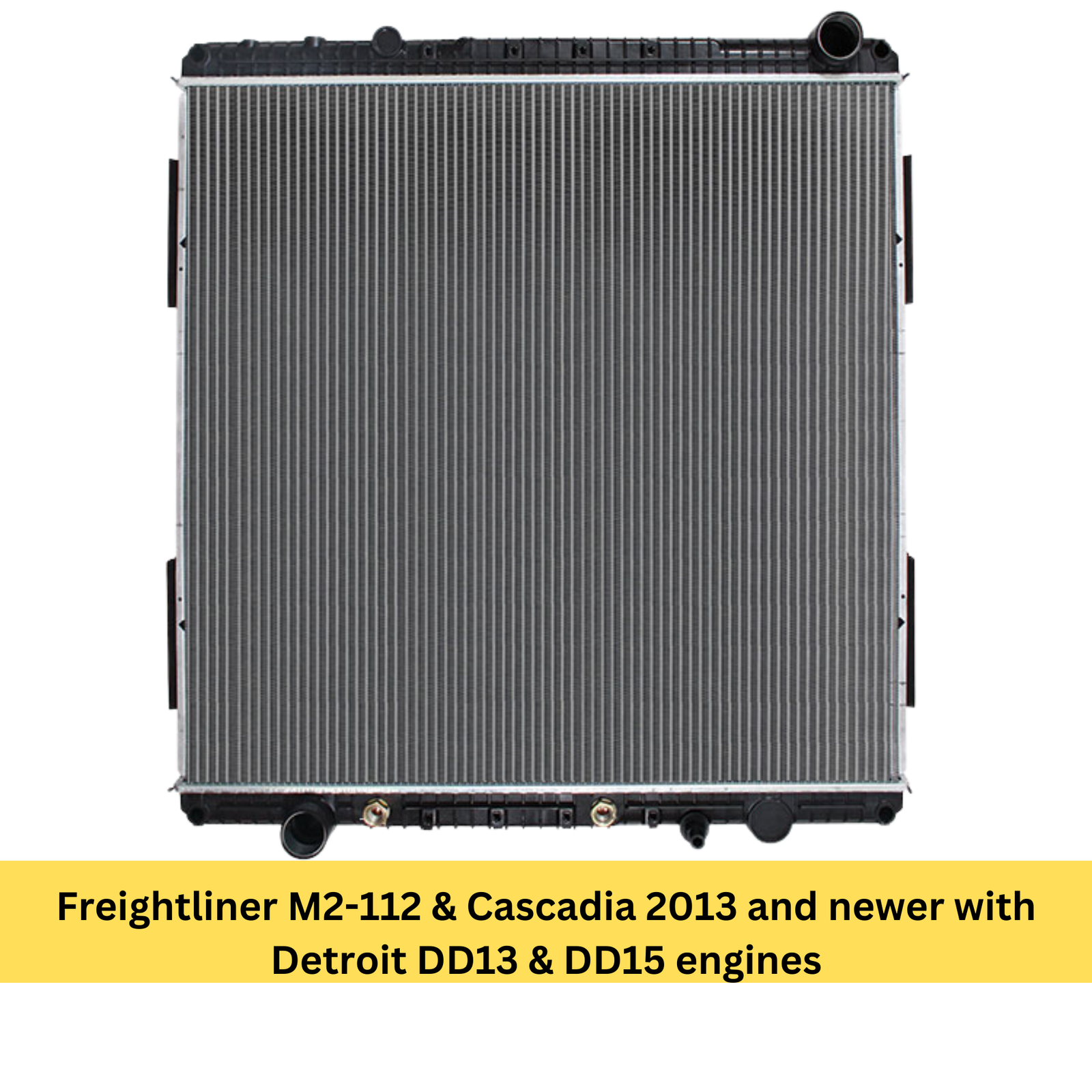

Heavy-duty replacement radiator engineered for 2013-up Freightliner Cascadia and M2-112 trucks equipped with Detroit DD13 or DD15 engines. It features a 35.8 × 38.6 × 2-in aluminum core, a 2.5-in right-hand inlet, a left-hand outlet, and an optional bottom oil-cooler provision. Frame and weld options match OEM or collision-repair requirements, while the surge-tank design preserves the Cascadia’s aerodynamic hood profile.
