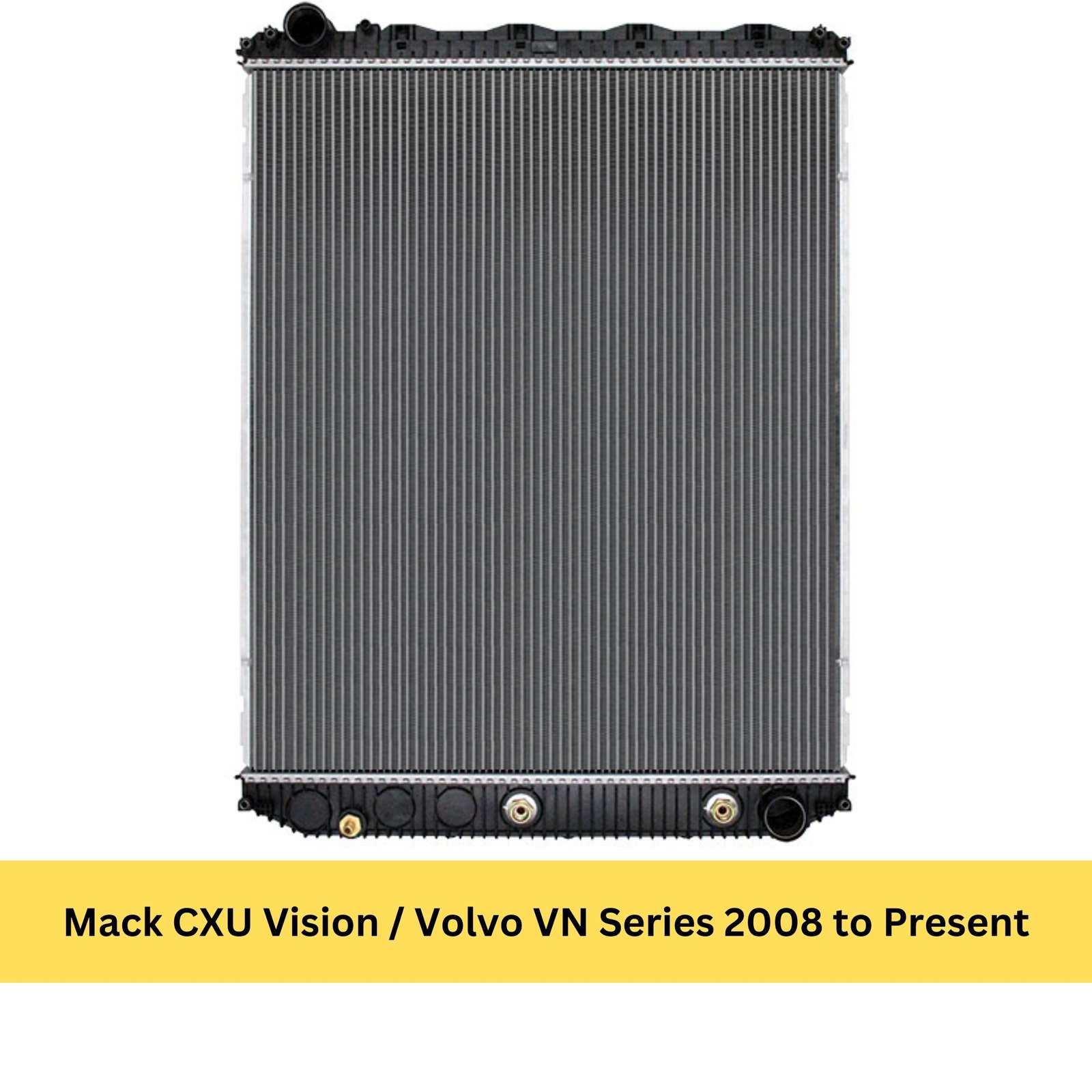

Mack CXU Vision / Volvo VN Series 2008 to Present

FL-151902

Name: FleetoneWD
Address: 1000 Northbrook Drive, Suite 100, Trevose, 19053, PA
Telephone: 2157855175

Mack CXU Vision / Volvo VN Series 2008 to Present

4.5 Ratings

Part #	FL-151902
UPC/GTIN#	601961386280
Availability	In Stock (1)

Feature	Specification
Type	Down-flow radiator assembly
Vehicle fit	Mack CXU Vision & Volvo VN Series, model-year 2008 → current
Core size (H × W × D)	40.44 in × 35.38 in × 2.25 in
Inlet	2.5 in – upper left tank
Outlet	2.5 in – lower right tank
Filler neck	None (remote surge tank system)
Oil cooler	Integrated, bottom-mount plate cooler
Core material	Aluminum
Tank material	Plastic (high-temperature, glass-filled)
Frame option	Supplied with or without steel side channels (see part-suffix variants)

Cooling architecture: Down-flow design matches the CXU/VN hood slope, routing coolant from left-top to right-bottom for even heat rejection under DD13, MP7/MP8 and D11/D13 engines.
Integrated oil cooler eliminates a separate heat exchanger and reduces hose count, a common fleet preference for lower service points.
Aluminum core with plastic tanks balances weight savings and corrosion resistance while maintaining OEM heat-transfer performance targets.
Frame variants (suffix PT / PTWF) ship with welded side channels for quick swap-out where the original steel frame is damaged.

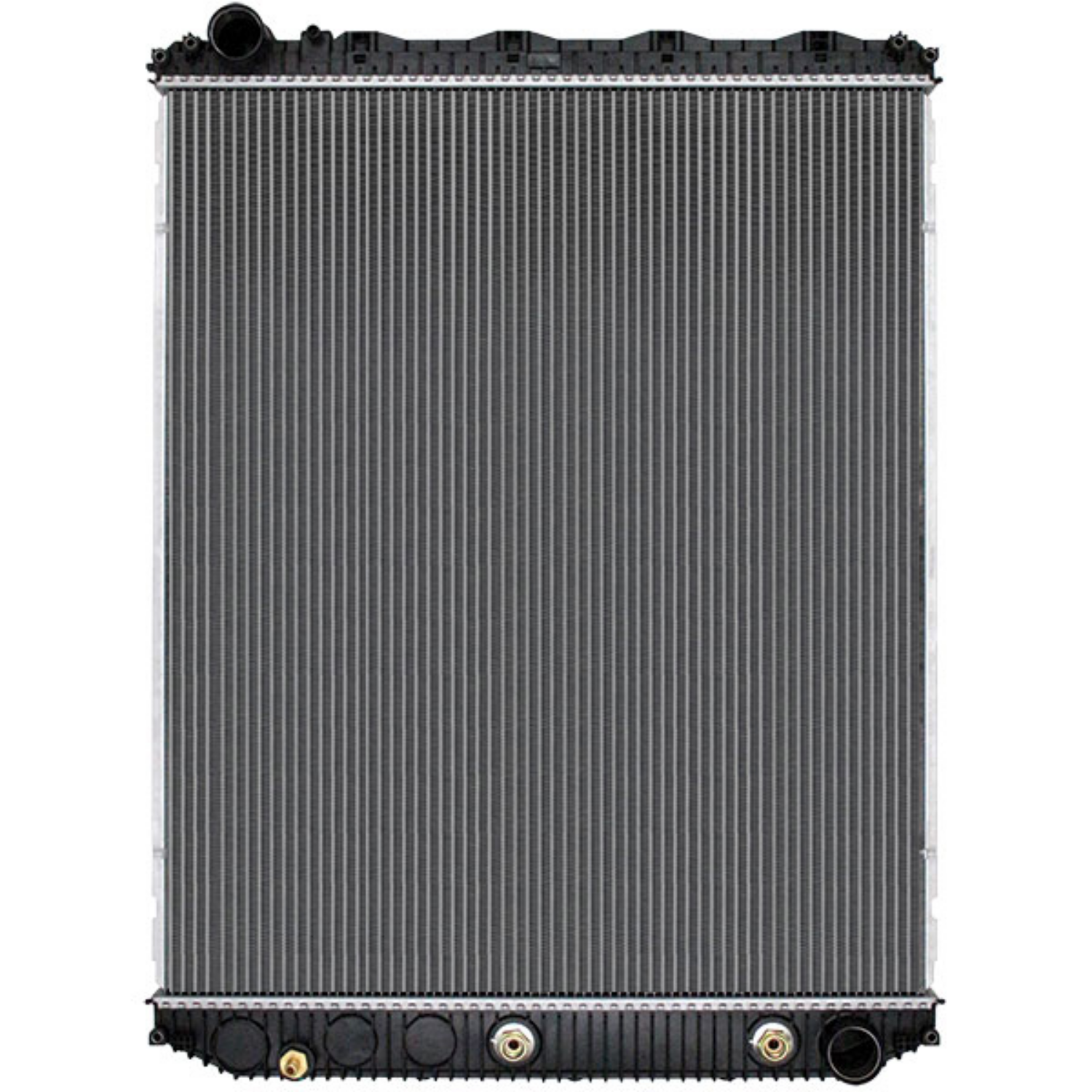

Heavy-duty replacement radiator engineered for Mack CXU Vision and Volvo VN tractors built from 2008 onward. The 800052 family uses 40-in high aluminum cores and 2.5-in connections to mate directly to factory charge-air and surge-tank plumbing, maintaining OEM cooling capacity for engines up to 500 HP.

Cross Reference / Part Interchange

Active Radiator	800052, 800052PT, 800052PTC, 800052ST, 800052AP
Active Radiator (Legacy)	8052
Mack / Volvo OE	20014608, SPI20014608, ABPN2020014608, S21856, 21856, 29070202, 070202, 20956552, 20956564, 21146403, 21146404, 21298076, 21504536, 21504548, 21593032, 21593038, 22644024, 22234461, 85111310, 85111314, 85125539, 85148411
