4.8 Ratings
Air Brake & Wheel

FL-111802

1.5" Cam / 28-Spline / 5.5" Gunite Slack Adjuster
Login to View the Price
Brand Fleetone
Part # FL-111802
UPC Code# 601961384989
Availability
  • 80
Features
Specification Details
Part Name Gunite 1.25" Cam / 10-Spline / 5.5" Automatic Slack Adjuster
Vehicle Model Heavy-duty trucks, On-highway steer axle applications
Year Universal
Position Rear Brakes
Lamp Type N/A
Lens Material N/A
Housing Material Compact Housing
Voltage N/A
Wattage N/A
Connector Type N/A
Mounting Type Direct mount
DOT/SAE Compliance N/A
Water Resistance Sealed with lubricated factors
Operating Temperature N/A
Lumen Output (LED Variant) N/A
Compatibility Compatible with various heavy-duty trucks
Package Contents 1 x Automatic Slack Adjuster
Warranty N/A
Manufacturer Gunite
LED Modules N/A
Electrical Connection N/A
Mounting Holes N/A
Background N/A
Lamp Style N/A
Visual Difference Drilled worm wheel, compact housing
Compliance N/A
Dimensions Arm Length: 5-1/2", Spline Diameter: 1-1/4", Spline Count: 10
Heating N/A
Adjustability Automatic
Weight N/A
Mirror Type N/A
Brake Adjuster Type Automatic Slack Adjuster
Features Lubricated, sealed, O-ring on spline gear, extended life clevis pin bushing, unhanded design

Description

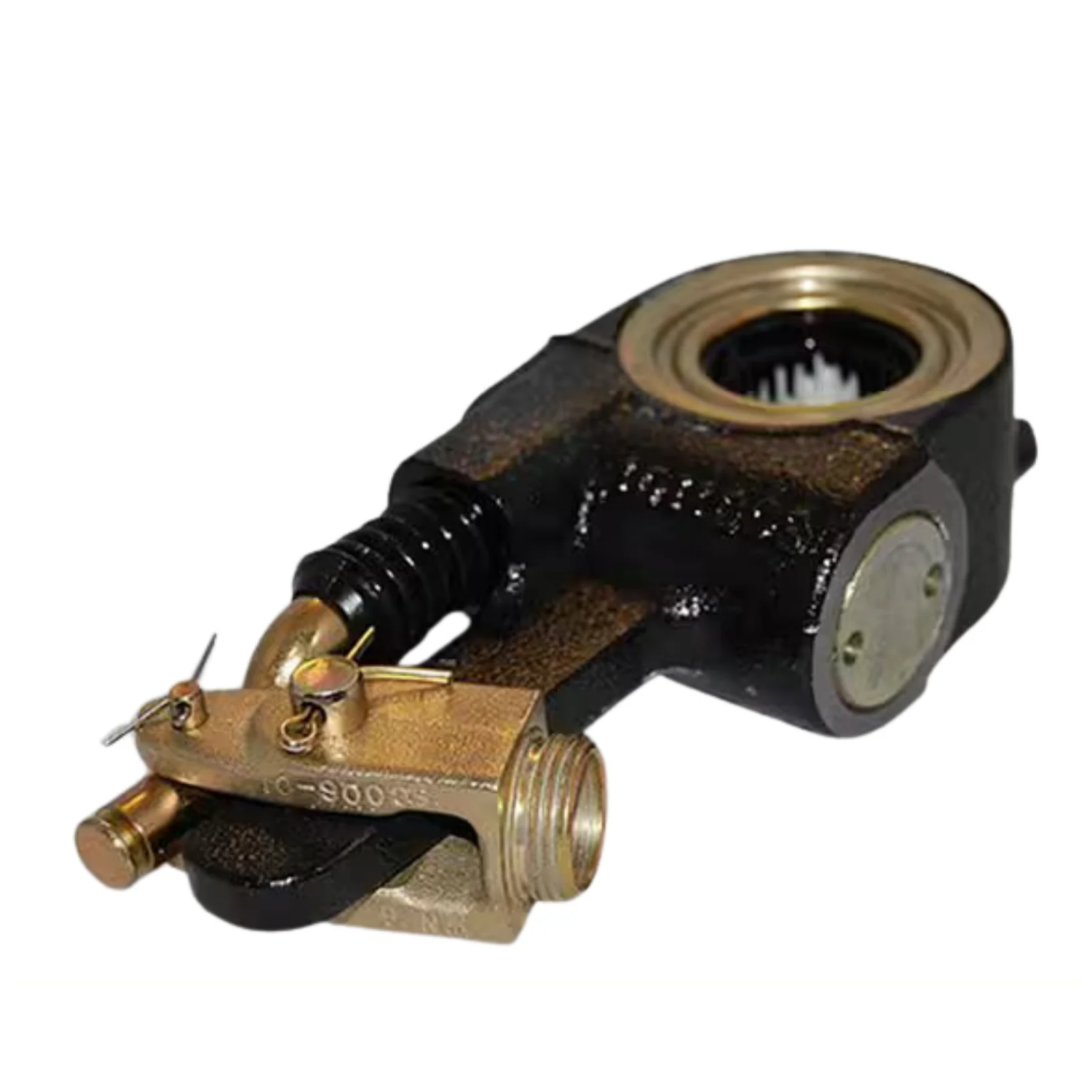

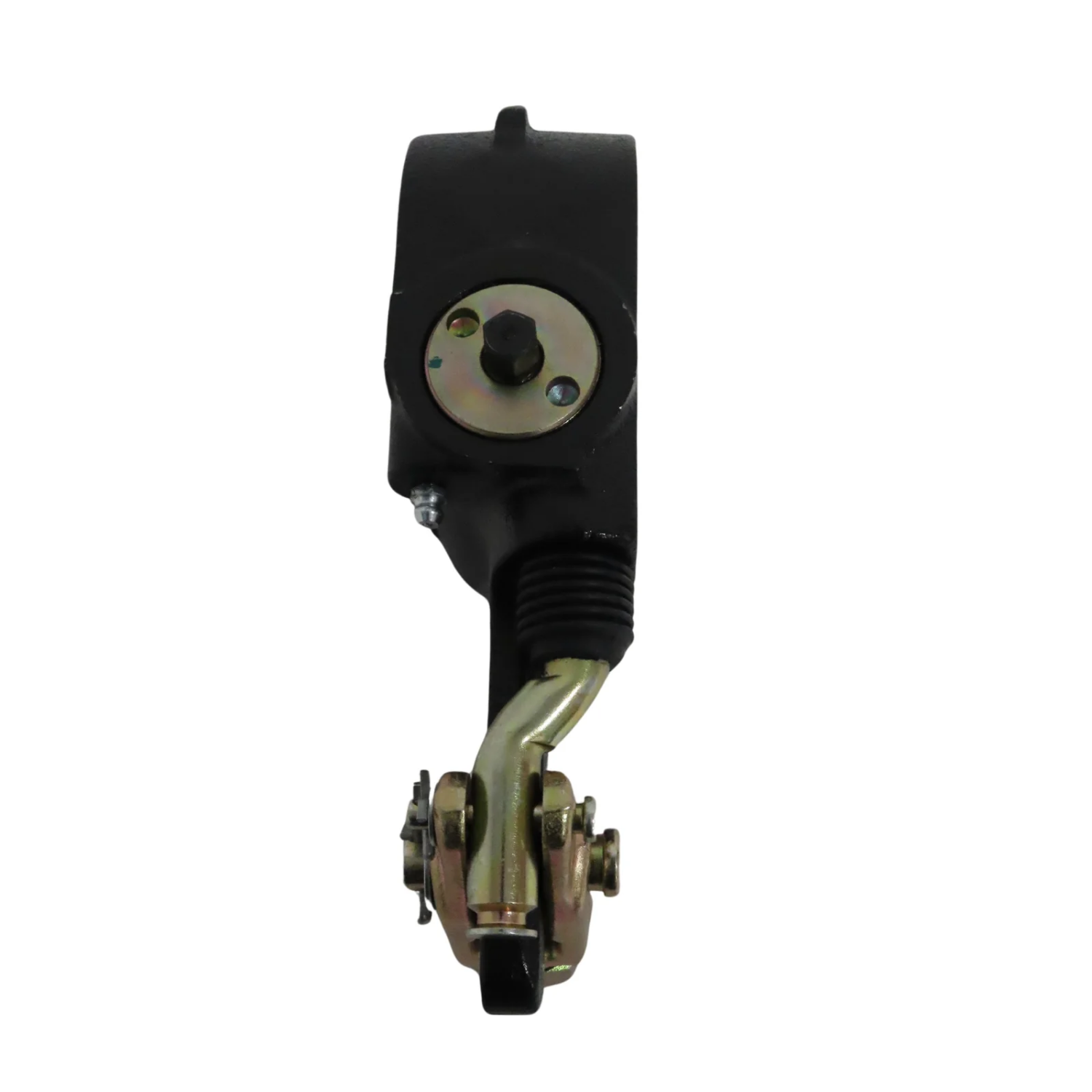

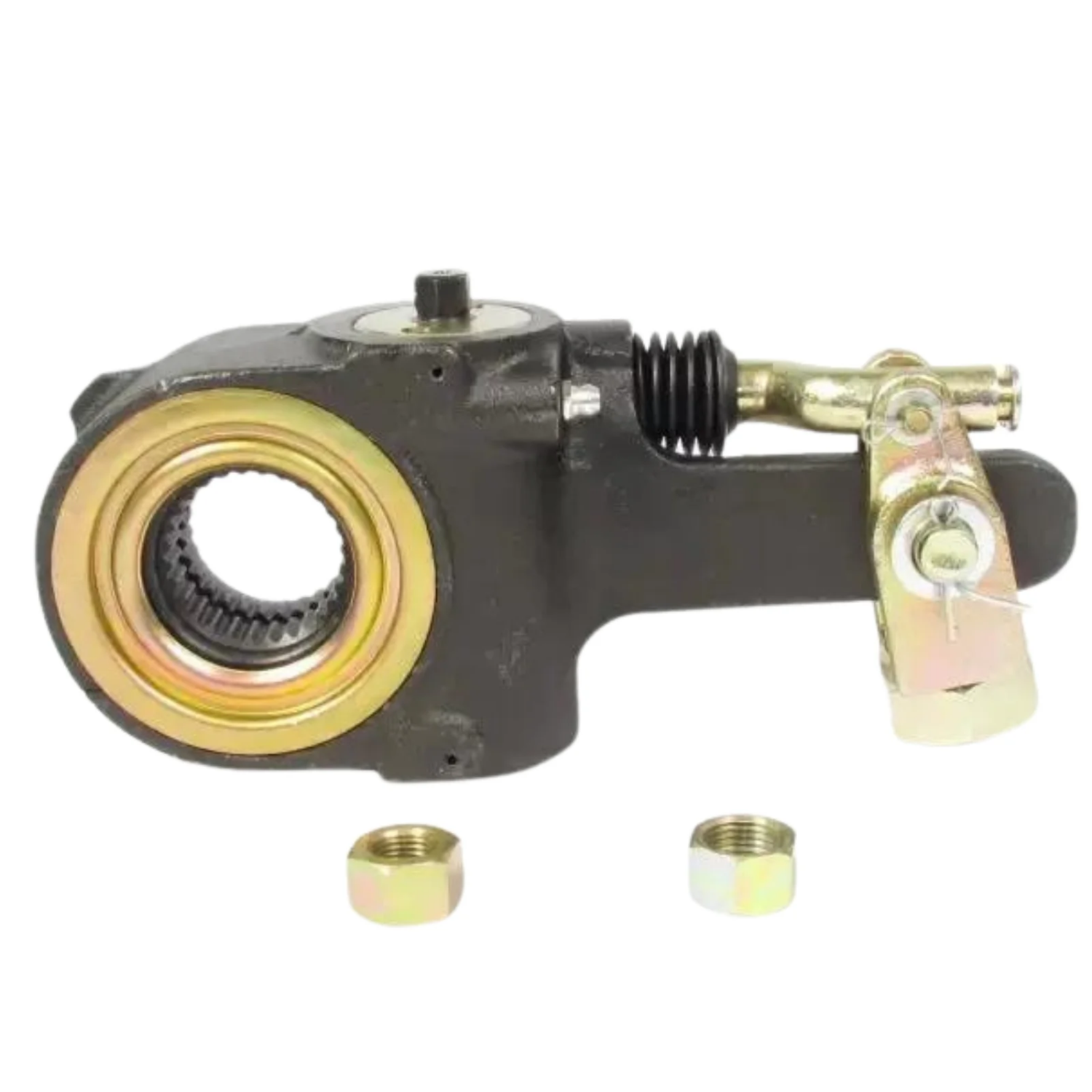

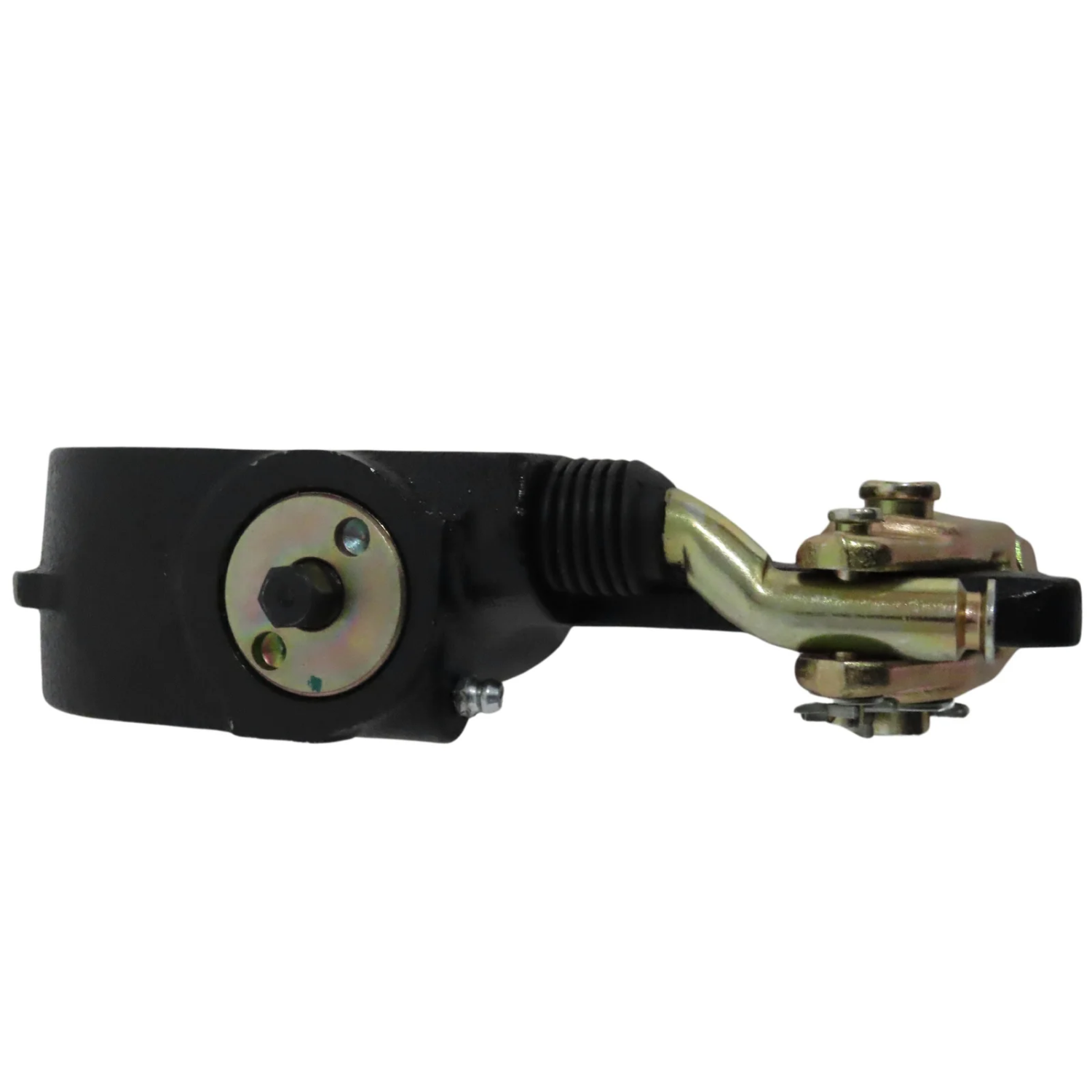

Gunite 1.25" Cam Automatic Slack Adjuster with 10-spline and 5.5" arm, designed to extend brake performance with a compact housing and automatic adjustment.

Cross Reference/Part Interchange

Brand Name Part Number
ACCURIDE 03-05229
ACCURIDE SA07002
ACCURIDE SA07102
ACCURIDE SA10502
ACCURIDE SA11302
ACCURIDE SAS1008
ACCURIDE A15-3275M1079
ACCURIDE SAS1009
ACCURIDE SAS1011
ACCURIDE SAS1039
ACCURIDE SAS1051
ACCURIDE SAS1052
ACCURIDE A2-3275A599S
ACCURIDE SAS1156
ACCURIDE SAS1175
ACCURIDE A1-3275Q1083S
ACCURIDE A1-3275R1084S
ACCURIDE A18-3275U593S
ACCURIDE A18-3275N768S
ACCURIDE A17-3275U593S
ACCURIDE A17-3275A599S
ACCURIDE A16-3276A599S
ACCURIDE A1-3275W1089S
ACCURIDE A1-3275X1090S
ACCURIDE A13-3275N768S
ACCURIDE SAS1168
ACCURIDE A2-3275N768S
ACCURIDE A16-3275A599S
ACCURIDE A2-3275U593S
ACCURIDE E9HT2314BB
ACCURIDE A31-3275M1079
ACCURIDE SA05801
ACCURIDE F8HT 2314 AA
ACCURIDE A2-3275U1139S
ACCURIDE SA02501
ACCURIDE A26-3275M1079
ACCURIDE 87HU2314AA
ACCURIDE 76401-3462
ACCURIDE 76401-0110
ACCURIDE A2-3275W1089S
ArvinMeritor A59-3275-A-599S
ArvinMeritor A59-3275-U-593S
ArvinMeritor A6-3275-N-768S
ArvinMeritor A44-3275A599S
ArvinMeritor A58-3275-U-593S
ArvinMeritor A21-3275N768S
ArvinMeritor A21-3275A599S
ArvinMeritor A44-3275U593S
ArvinMeritor A21-3275U593S
ArvinMeritor A23-3275N768S
ArvinMeritor A24-3275M1079
ArvinMeritor A1-3275X1090S
ArvinMeritor A1-3275W1089S
ArvinMeritor A1-3275R1084S
ArvinMeritor A1-3275Q1083S
ArvinMeritor A13-3275N768S
ArvinMeritor A5-3275-N-768S
ArvinMeritor A2-3275X1090S
ArvinMeritor A56-3275-U-593S
ArvinMeritor A17-3275U593S
ArvinMeritor A17-3275A599S
ArvinMeritor A16-3276A599S
ArvinMeritor A16-3275A599S
ArvinMeritor A15-3275M1079
ArvinMeritor A18-3275N768S
ArvinMeritor A18-3275U593S
ArvinMeritor A19-3275N768S
ArvinMeritor A2-3275A599S
ArvinMeritor A33-3275N768S
ArvinMeritor A26 3275M1079
ArvinMeritor A25-3275U593S
ArvinMeritor A25-3275A599S
ArvinMeritor A24-3275N768S
ArvinMeritor A58-3275-A-599S
ArvinMeritor A2-3275U1139S
ArvinMeritor A2-3275U593S
ArvinMeritor A2-3275W1089S
ArvinMeritor A2-3276A599S
ArvinMeritor A56-3275-A-599S
ArvinMeritor A2-3275N768S
Bendix Corporation 109518
Bendix Corporation 108371
Bendix Corporation 289314
Bendix Corporation 289315
Bendix Corporation 801355
Bendix Corporation 108645
Bendix Corporation 108118
Bendix Corporation 107991
Bendix Corporation 107997
Bendix Corporation 65174
Bendix Corporation 65221
Bendix Corporation 65247
Bendix Corporation 101261
Bendix Corporation 101262
Bendix Corporation 101769
Bendix Corporation 101770
Bendix Corporation 106204
Bendix Corporation 106207
Bendix Corporation 107105
Bendix Corporation 107108
Bendix Corporation 108068
Bendix Corporation 107144
Bendix Corporation 107143
Bendix Corporation 107276
Bendix Corporation 107996
Bendix Corporation 107788
Bendix Corporation 107179
Bendix Corporation 107689
Bendix Corporation 107688
Bendix Corporation 107739
Bendix Corporation 107536
Bendix Corporation 107421
Bendix Corporation 107403
Bendix Corporation 107402
Bendix Corporation 107687
Crewson Industries CI421A0
Crewson Industries CI42100
Crewson Industries CI221A2
Crewson Industries CI22102
Crewson Industries CB72100
Crewson Industries CB42100
Crewson Industries CB22952
Crewson Industries CB22182
Crewson Industries CB22102
Crewson Industries CB42180
Dana Corporation 25QD51
Dana Corporation 808254
Dana Corporation 810336
Dana Corporation 811120
Dana Corporation 815788
Eagle 52528
Eagle 52530
Euclid E-11401
Euclid E-11400
Euclid E-10893
Euclid E-10779A
Euclid E-091K
Euclid E-10785A
Ford Motor Company E7HZ2314A
Ford Motor Company E9HT2314BA
Ford Motor Company E9HZ2314B
Ford Motor Company F8HT2314AA
Ford Motor Company F8HZ2314AA
Freightliner LLC 6814205638
Freightliner LLC GUN AS1140
Freightliner LLC GUNSA102 02
Gunite SA04201
Gunite SA02203
Gunite SA03601
Gunite SA10202

Detailed Description

The Genuine Gunite Automatic Slack Adjuster is designed to offer precise and reliable brake adjustment, reducing downtime and increasing efficiency for your vehicle. This model fits a 1.50" - 28 spline camshaft and has a 6" arm length, providing optimal performance without any offset. Engineered with a clearance-sensing system, it automatically adjusts the brake based on the distance between the brake drum and lining, ensuring consistent braking. The adjuster comes with a pre-installed clevis, an installation template, and detailed instructions for easy setup.

Gunite slack adjusters are known for maintaining consistent shoe-to-drum clearance, helping to extend brake lining life and reducing the need for frequent adjustments or maintenance. By adjusting on the applied stroke, it reads the clearance when the brake drums are at their coolest, ensuring minimal component deflection. This unique design results in consistent brake adjustment and improved overall brake performance, leading to less downtime, lower maintenance costs, and enhanced safety during DOT inspections.
