FL-111801

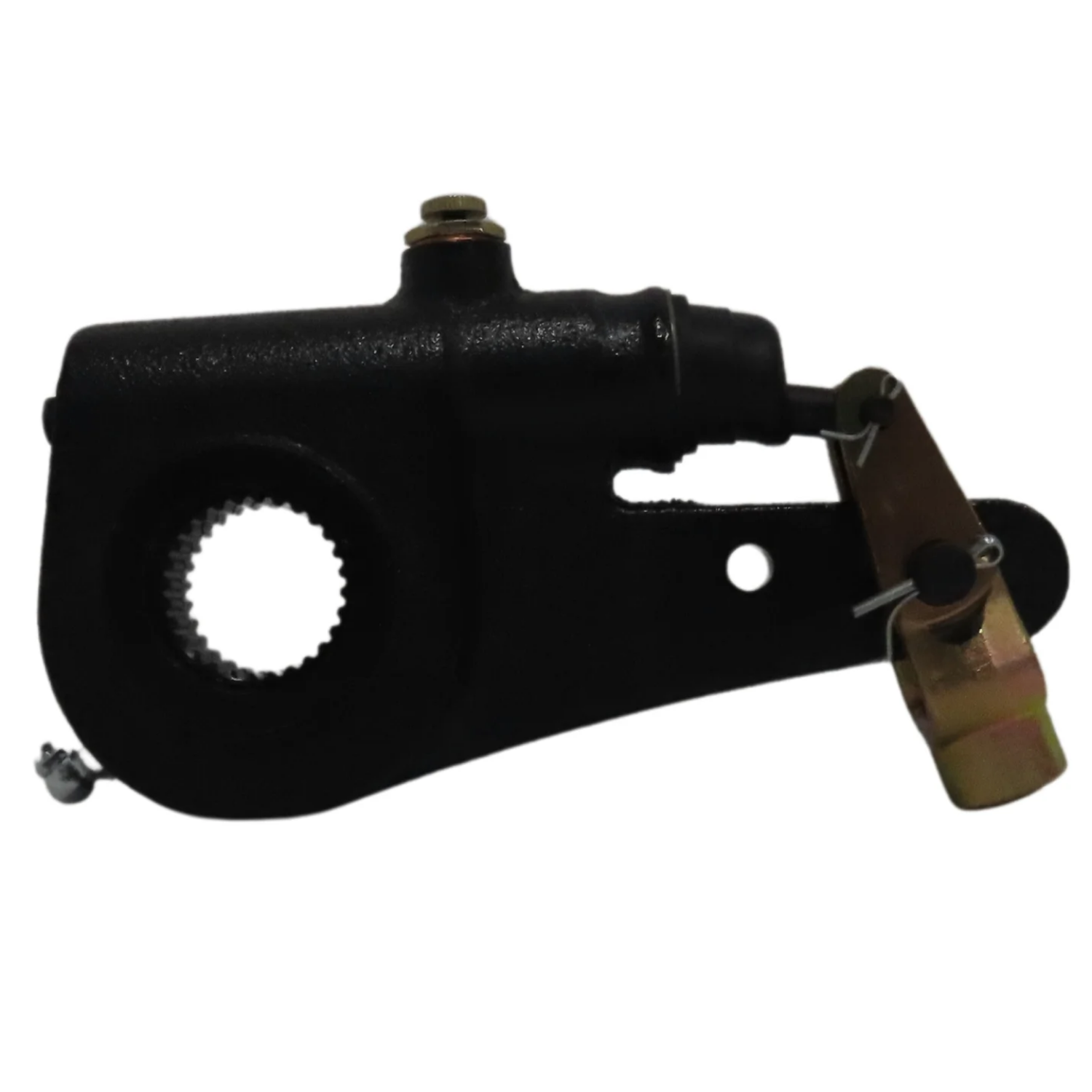

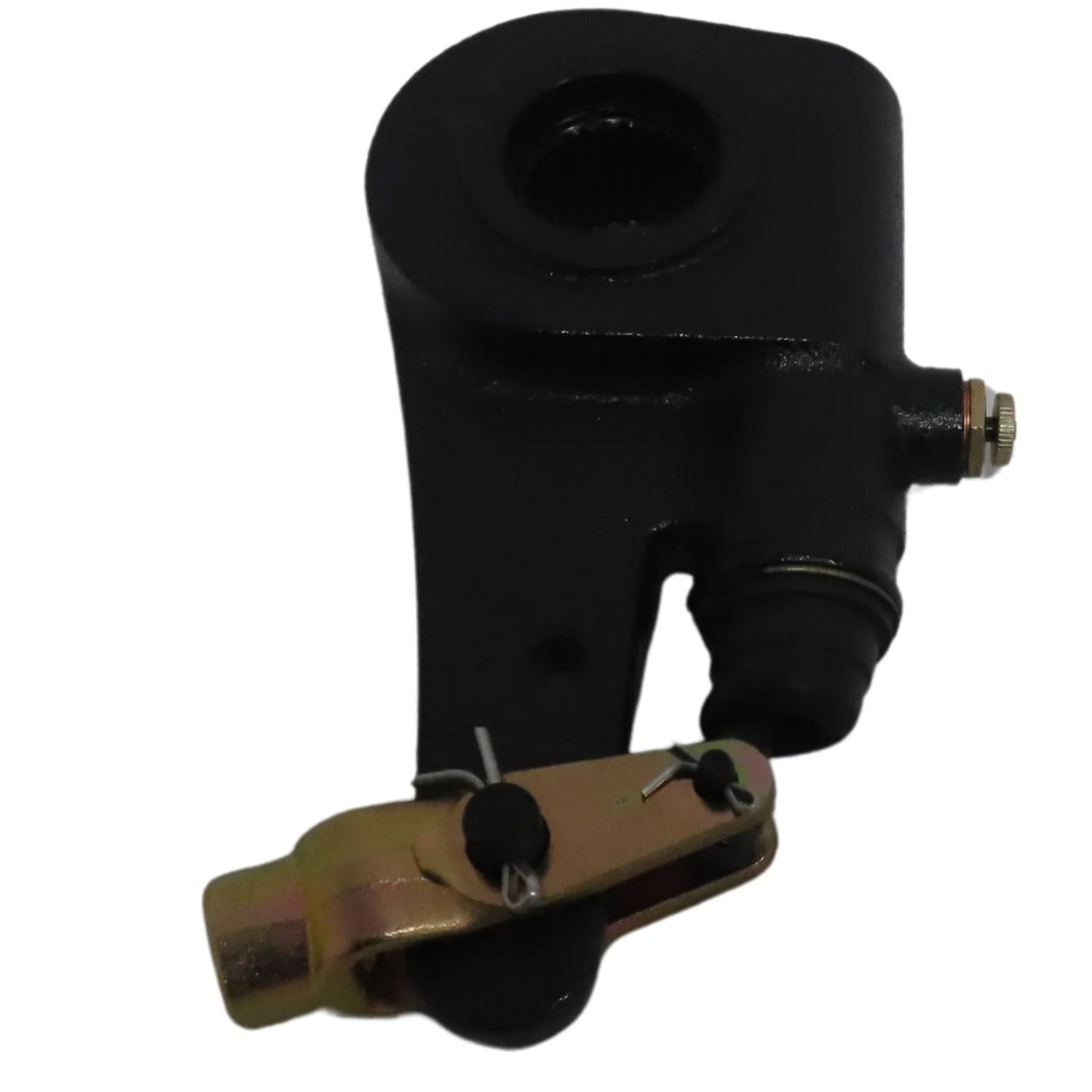

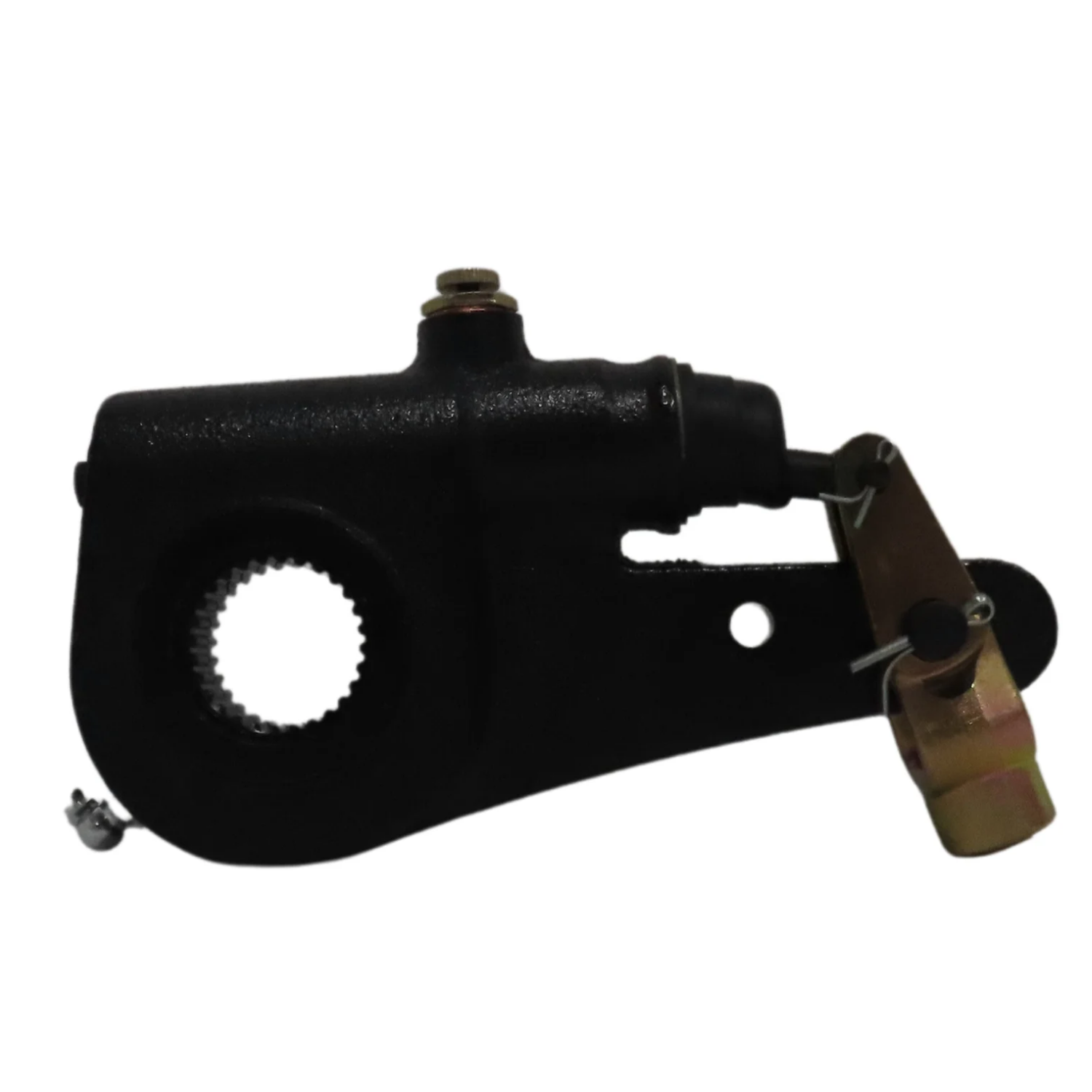

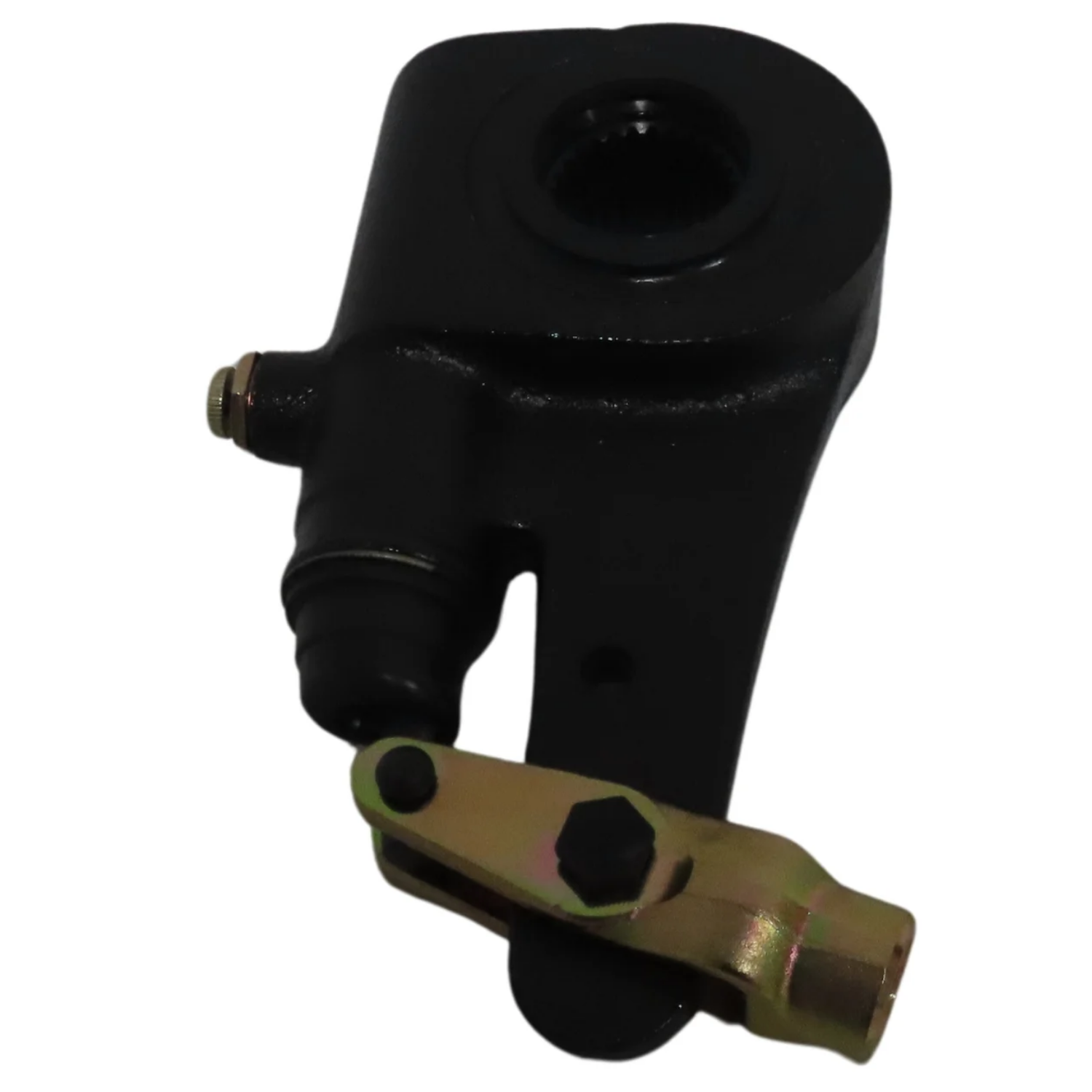

1.5" Cam / 28-Spline / 5.5" Meritor Slack Adjuster
| Part # | FL-111801 |
| UPC/GTIN# | 601961384965 |
| Availability | In Stock (80) |
| Specification | Details |
|---|---|
| Part Name | Meritor Automatic Slack Adjuster |
| Vehicle Model | Universal fit for brakes with 5.5" to 6" arms |
| Year | Universal |
| Position | N/A |
| Lamp Type | N/A |
| Lens Material | N/A |
| Housing Material | Ductile Nodular Iron |
| Voltage | N/A |
| Wattage | N/A |
| Connector Type | Non Quick-Connect Clevis |
| Mounting Type | Direct Mount |
| DOT/SAE Compliance | N/A |
| Water Resistance | N/A |
| Operating Temperature | N/A |
| Lumen Output (LED Variant) | N/A |
| Compatibility | Fits most brakes with 5.5" to 6" arms |
| Package Contents | 1 x Automatic Slack Adjuster with Straight Clevis |
| Warranty | N/A |
| Manufacturer | Meritor |
| LED Modules | N/A |
| Electrical Connection | N/A |
| Mounting Holes | N/A |
| Background | N/A |
| Lamp Style | N/A |
| Visual Difference | Drilled worm wheel for lubrication |
| Compliance | N/A |
| Dimensions | 1 1/2"-10 X 6" |
| Heating | N/A |
| Adjustability | Automatic |
| Weight | 6.6 lbs |
| Mirror Type | N/A |
| Arm Length | 6" |
| Spline Length | 10 |
| Spline Diameter | 1 1/2" |
| Design Features | Unhanded design, factory lubricated, stroke sensing, collar lock clevis |
| Brackets Required | No External Brackets Required |
| Lubrication | Factory lubricated and sealed |
| Additional Info | Heavy Duty Internals, Long Stroke Compatible |
Meritor Automatic Slack Adjuster with a 6" arm length, stroke sensing, and heavy-duty design, offering reliable performance for braking systems with 5.5" to 6" arms.
Cross Reference / Part Interchange
| Brand Name | Part Number |
|---|---|
| Freightliner | A05-25263-003 |
| Freightliner | A05-25263-005 |
| Freightliner | A05-25263-006 |
| Freightliner | A05-25263-007 |
| Freightliner | S-22069 |
| Meritor | R801042, R803106, R801044 |
| Industry Cross Reference | A81042, RORR801042, MPGS-23557 |
| Euclid | E11401, E15024 |
| Automann | 1392831 |
| Bendix | 65174 |
| ContiTech | 65174 |
| DEKA | 5363 |
| Gunite | AS1140 |
| Haldex | CS52320, CS52321 |
| HDValue | HDV801073 |
| OTR | OTR51140, OTR801073 |
| Stanley - Blackhawk Tools | MK22100S |
| Stemco | MK42100S |
| Unknown | SA1073 |
