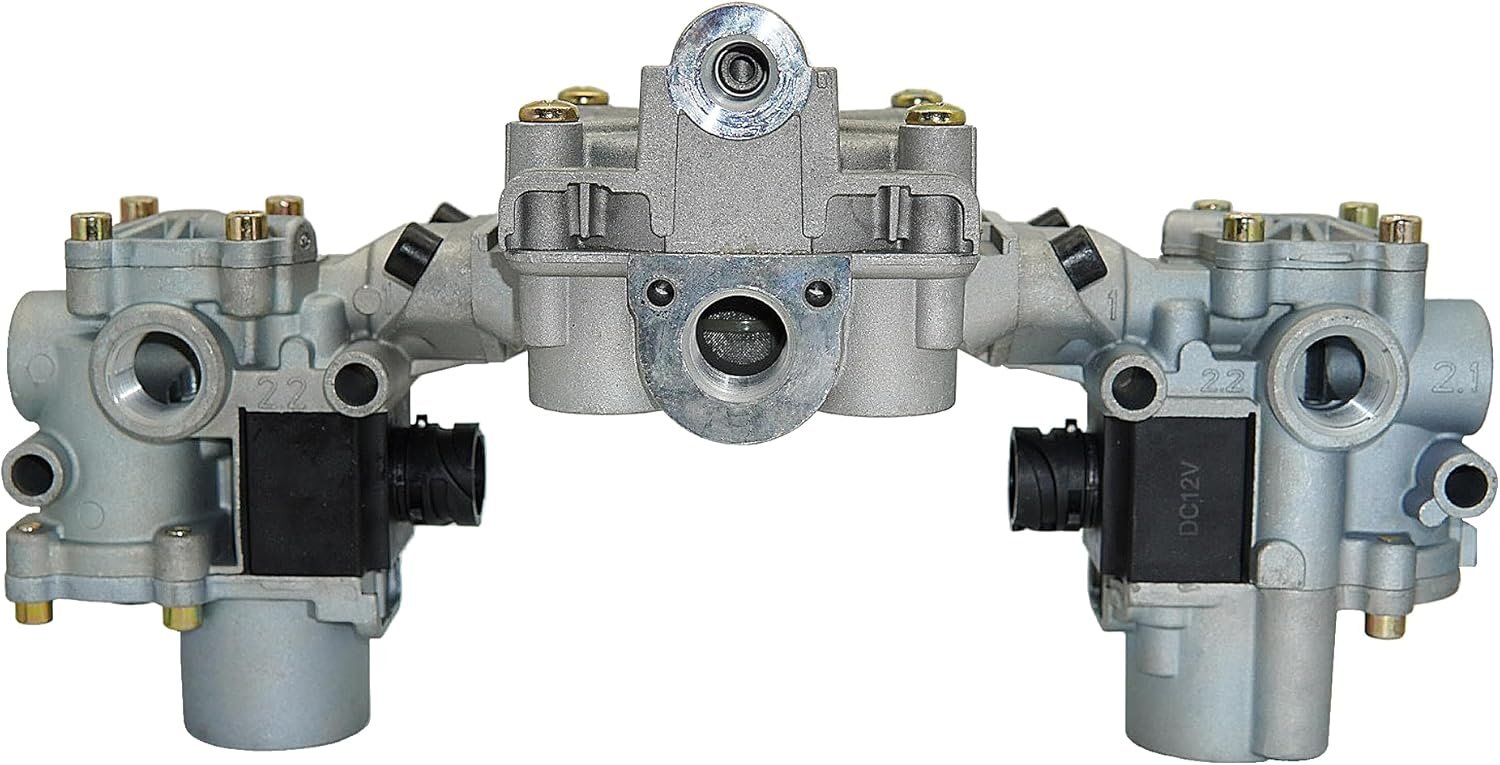

ABS Relay Emergency Valve Replace 4725001230

4.5 Ratings

Feature	Specification
Type	ABS relay valve/modulator package (4S/4M or 6S/4M configuration)
Operating pressure	11 bar (160 PSI)
Crack pressure	5.5 PSI
Response pressure	0.38 bar (5.5 PSI)
Voltage	12V DC
Electrical connection	DIN 72585-A1-3.1-Sn/K1 bayonet-style connectors
Port 1 (supply)	1/2"-14 NPTF
Port 2 (control)	3/8"-18 NPTF
Port 2.1 & 2.2 (delivery)	1/2"-14 NPTF
Port 4 (emergency)	1/4"-18 NPTF
Temperature range	-40°F to +185°F (-40°C to +80°C)
Protection class	IP66, IP69K
Weight	5.25 lb

Includes

Complete ABS relay valve/modulator package with one 4725000072 relay valve, one 4721950780 (LH) modulator, and one 4721950790 (RH) modulator.
Replacement kits contain valve, bolts, O-rings, and lubricant.

Provides an alternative to separate valve installation by combining a service brake relay valve with two ABS modulator valves (left and right) in a single integrated package.
Compatible with Wabco C, D, and E version ABS ECUs for flexible system integration on modern trucks.
Designed for rear axle installation on 4S/4M or 6S/4M ABS configurations with reliable performance in extreme conditions.
