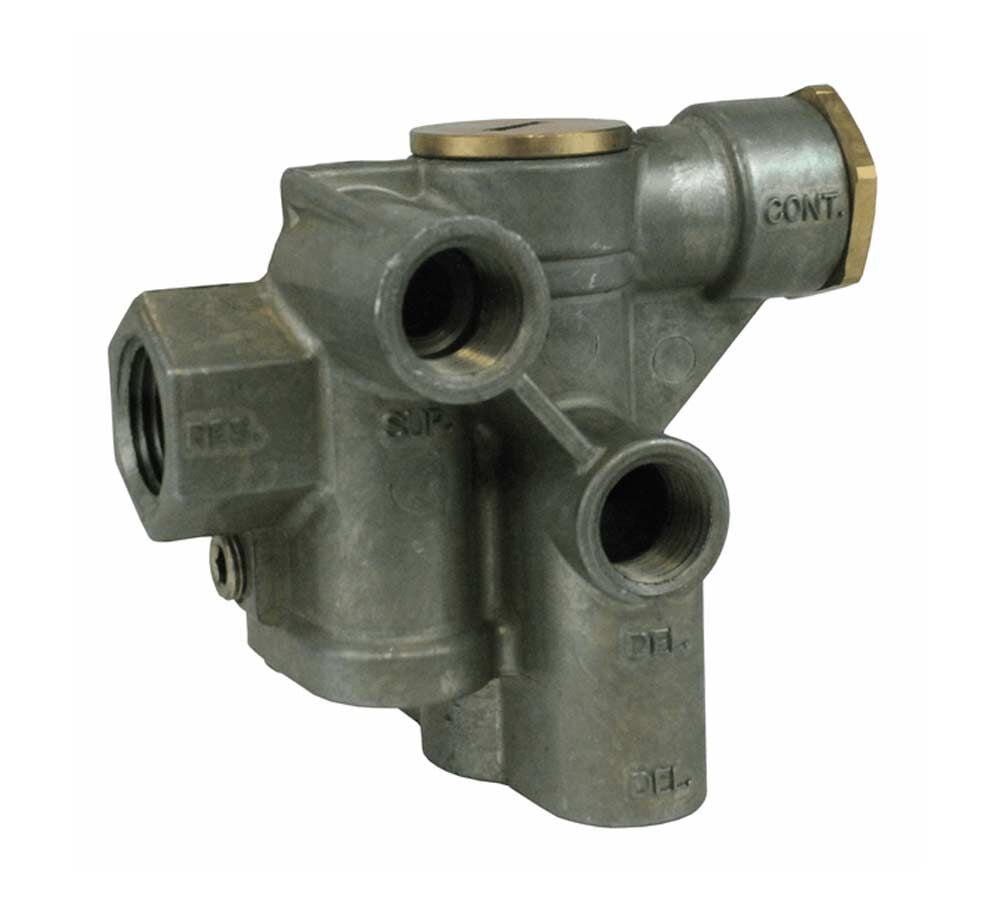

Spring Brake Control Valve Replace 110700 KN26110 KN26020 51321 S20220

4.5 Ratings

Feature	Specification
Type	Service brake priority spring brake control valve with relay
Supply port	3/8" NPT
Control port	3/8" NPT
Reservoir port	1/2" NPT
Delivery port	3/8" NPT
Internal pressure protection	Opens at approximately 80 PSI
Dimensions	4.9" L × 3.7" W × 3.5" H
Weight	Approximately 2 lbs
Application	Trailer spring brake systems with service brake priority

Includes

Unique service brake priority design with relay feature dramatically lowers spring brake release times while filling both reservoir and spring chambers simultaneously.
Ensures service pressure builds in reservoir before spring brakes release, preventing premature brake release.
Built-in control port prevents brake compounding for safer trailer operation.
