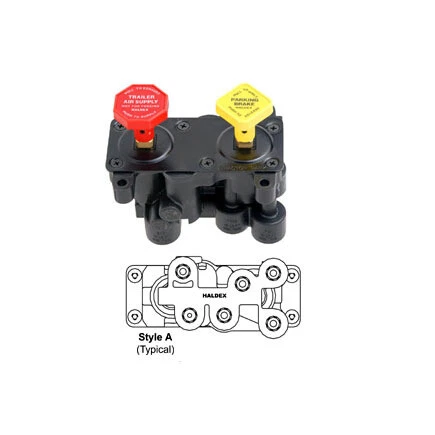

MV-2 Control Valve Replace 101437 KN20611 3918398

4.5 Ratings

Feature	Specification
Type	MV-2 dash control valve manifold / module
Valves included	Two push-pull control valves with dual circuit supply valve
Port connections	1/4"-18 NPT bottom-mounted ports
Operating pressure	Dual circuit supply switches at 20-30 PSI differential
Temperature range	-40°F to 200°F
Material	Cast iron body
Weight	Approximately 1.47 lb
Application	Heavy-duty truck and trailer air brake control

Includes

Complete MV-2 control valve manifold assembly with two push-pull control spools and dual circuit supply valve.
Pre-assembled and ready for dash mounting with bottom-side air connections.

Provides complete dash-mounted control for tractor protection, trailer service air supply, system park, trailer park only, and trailer charge functions in a single integrated module.
Features spring-loaded dual circuit supply valve that automatically selects between primary and secondary reservoir based on pressure differential for redundancy and safety.
Includes auxiliary air delivery port supplied by the dual circuit valve for additional system functions.
