FL-251702
Threaded Leaf Spring Bushing
| Part # | FL-251702 |
| UPC/GTIN# | 601959608714 |
| Availability | In Stock (250) |
| Feature | Specification |
| Type | Threaded spring pin bushing (spring eye threaded bushing) |
| Product Application | Front spring eye/suspension spring pin bushing on Kenworth (and some related Paccar applications) |
| Bushing OD | 2 1/16" (approx. 52.8 mm) outside diameter |
| Length | 101 mm bushing length |
| Thread Size | M33.5 x 4.0 metric thread (matches B65-1002 threaded spring pin) |
| Material | Hardened steel threaded bushing for heavy-duty suspension service |
Includes (sold as a single service bushing):
- 1x threaded spring pin bushing B13-1002 for Kenworth-style spring eyes
- Designed to be used with a matching threaded spring pin (such as B65-1002) in front suspension applications

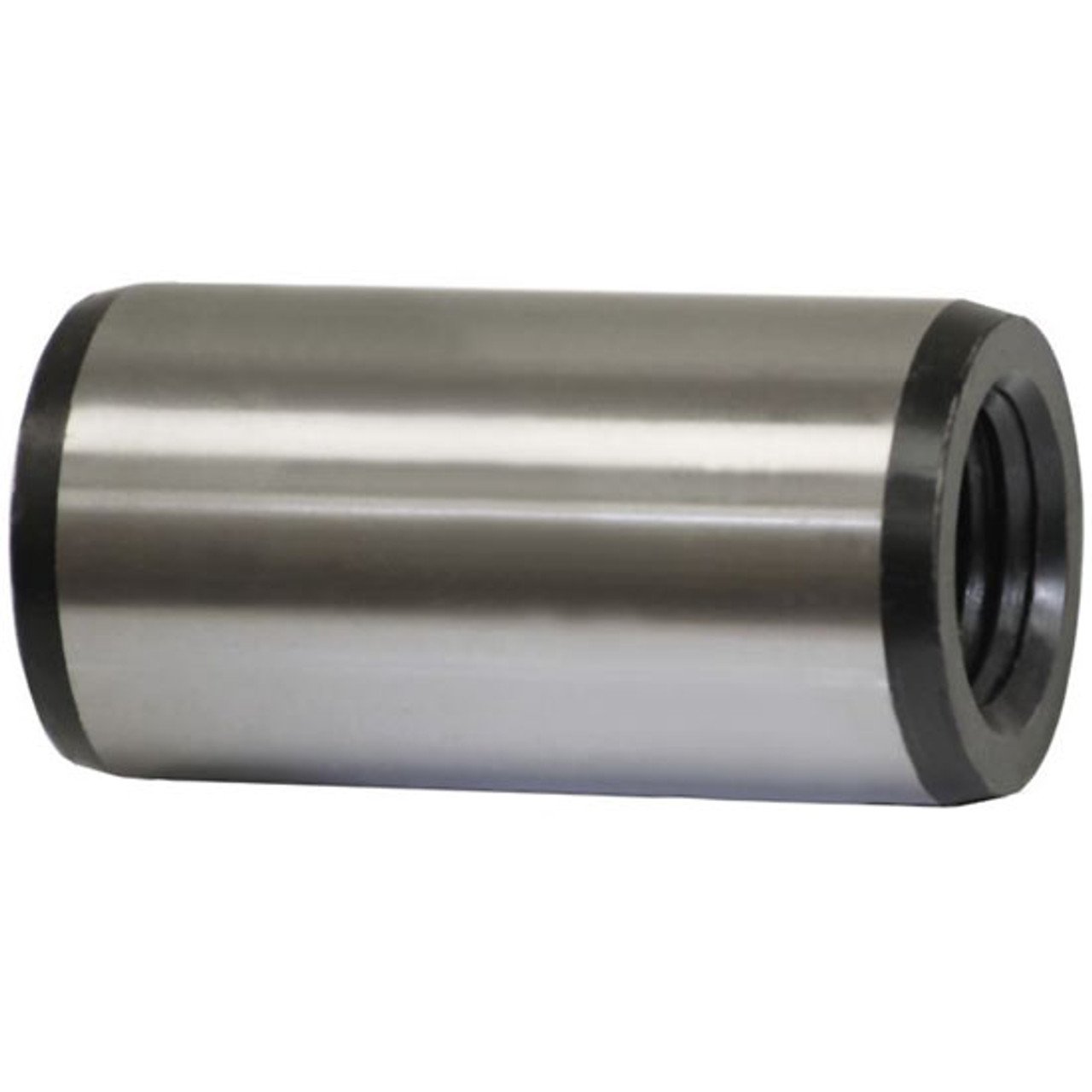

The Spring Pin Bushing is a threaded steel bushing that installs into the spring eye on select Kenworth front suspensions, providing a precise, hardened bore for the matching threaded spring pin.
With a 2 1/16" (52.8 mm) outside diameter, 101 mm length, and M33.5 x 4.0 thread, it is dimensioned to work with B65-1002-type threaded pins and rubber isolated front spring configurations, ensuring proper alignment and articulation of the leaf spring.
Cross Reference / Part Interchange
| Manufacturer / Brand | Part Number |
| Paccar / Kenworth | B13-1002 |
| Meritor / Euclid style | MTB186 (threaded bushing, replaces Kenworth B13-1002) |
