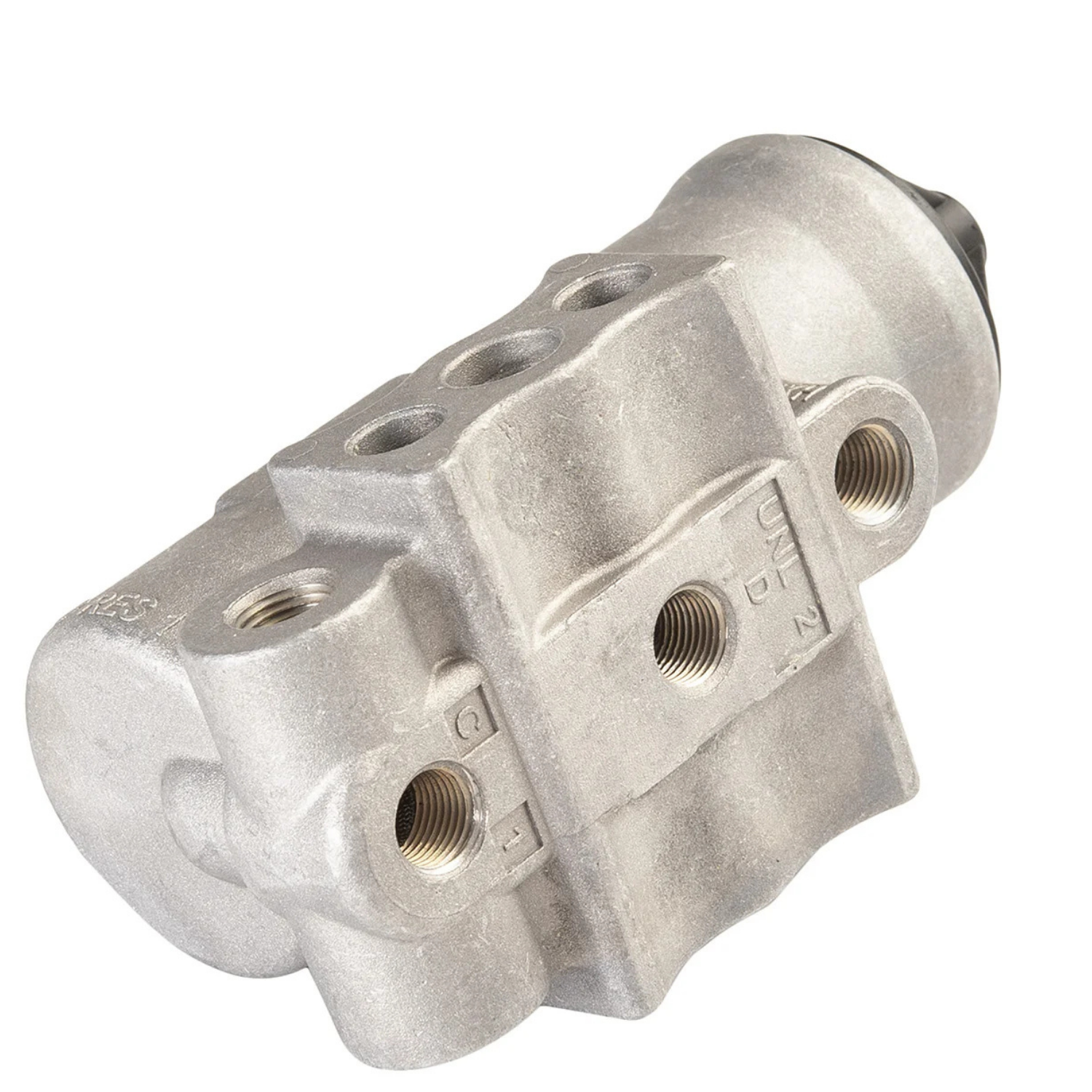

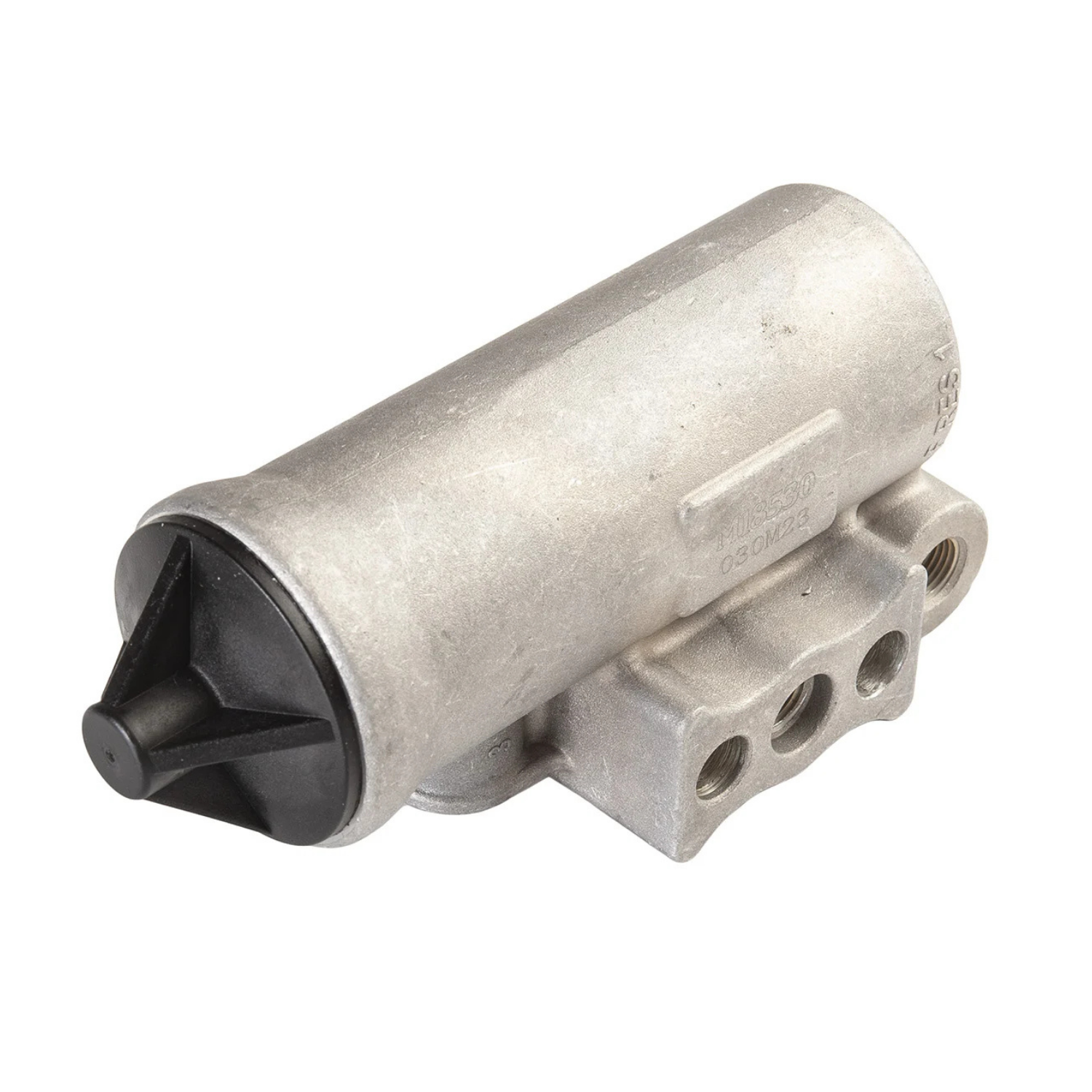

D-2 air governor Replace KN18530 284358 275491 101474

FL-112705

D-2 air governor Replace KN18530 284358 275491 101474

4.5 Ratings

Part #	FL-112705
UPC/GTIN#	601961387652
Availability	In Stock (100)

Feature	Specification
Type	D-2 Air Compressor Governor
Cut-In Pressure	100–105 psi (adjustable)
Cut-Out Pressure	120–130 psi (adjustable)
Port Sizes	1/8-inch NPT (all ports)
Mounting Hole Diameter	0.336 inch

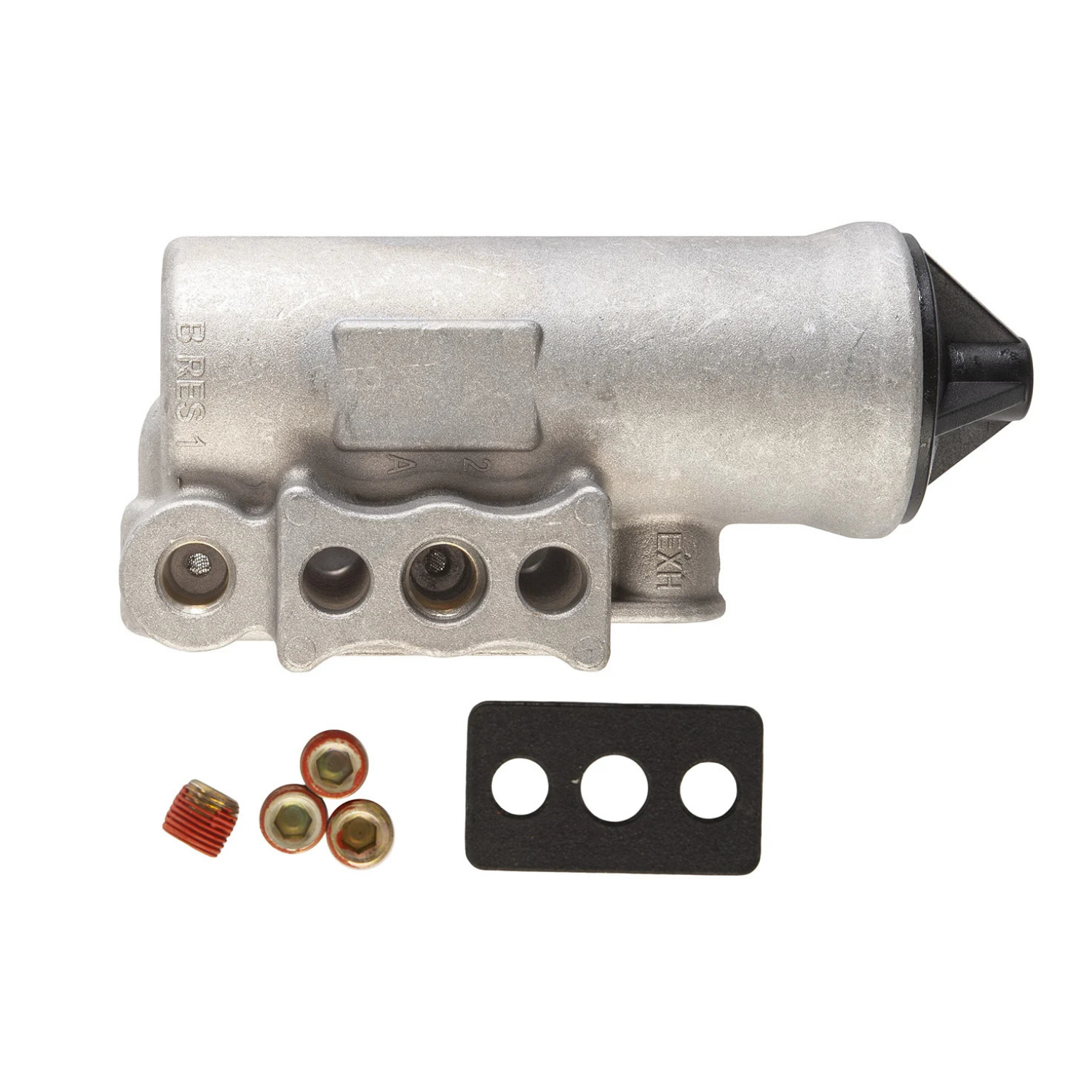

Kit Includes	Gasket, 4 port plugs (typical kit)
Position	Compressor air brake system (trucks, trailers, buses)

Pressure Adjustment Range: Designed to control air compressor operation by maintaining system pressure, typically adjustable from 100–130 psi.
Mounting & Ports: Standard mounting dimensions and 1/8-inch NPT threaded ports for most heavy-duty truck and trailer applications.
Materials: Manufactured from corrosion-resistant, robust metal alloys to withstand harsh environments and vibration.
Application: Commonly installed on air brake-equipped vehicles, including Class 6-8 trucks, semi-trailers, and buses.

This is a heavy-duty, threaded D-2 style air compressor governor—directly interchangeable with Bendix/Haldex and related models (KN18530, 284358, 275491, 101474). It automatically cycles the air compressor on at a set "cut-in" pressure (typically 100–105 psi) and off at a set "cut-out" pressure (typically 120–130 psi).

Standardized port sizing and mounting make it a universal fit in commercial truck, trailer, and bus air brake systems. The governor ensures system safety and reliability by precisely managing compressor operation within OEM brake system requirements, and is widely available as both OEM and aftermarket replacement.
